Ace Brand Wedge Anchor Zinc-Plated (ZP) - (1PC)

Description

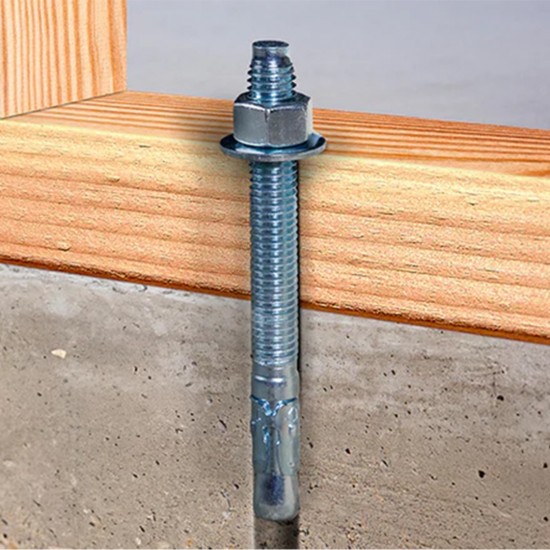

A Wedge Anchor (ZP) is a high-strength mechanical expansion fastener designed to securely fix heavy loads into solid concrete. Made from durable steel with a zinc-plated (ZP) finish, it provides corrosion resistance for indoor or dry environments. The anchor consists of a threaded stud, a conical expansion clip, a nut, and a washer. When the nut is tightened, the expansion clip wedges tightly against the sides of the drilled hole, creating a secure, vibration-resistant hold.

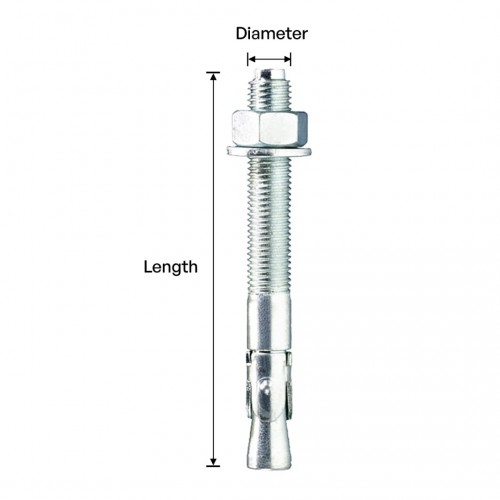

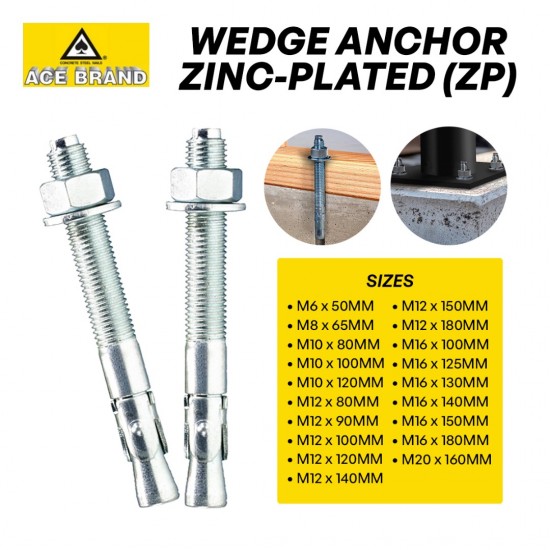

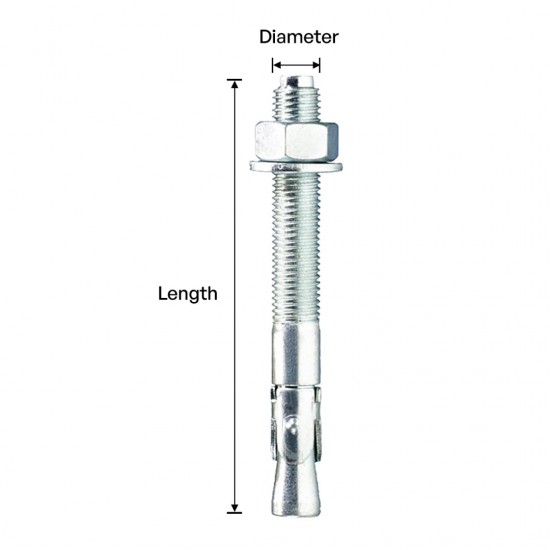

Available Sizes

• M6 x 50MM
• M8 x 65MM
• M10 x 80MM
• M10 x 100MM
• M10 x 120MM
• M12 x 80MM
• M12 x 90MM
• M12 x 100MM
• M12 x 120MM
• M12 x 140MM
• M12 x 150MM
• M12 x 180MM
• M16 x 100MM
• M16 x 125MM
• M16 x 130MM
• M16 x 140MM
• M16 x 150MM
• M16 x 180MM
• M20 x 160MM

Specifications

• Material: Carbon steel
• Finish: Zinc Plated (ZP) for corrosion resistance
• Anchor Type: Mechanical expansion, wedge type
• Thread Type: Metric (M6, M8, M10, M12, M16,  M20)
• Suitable Base Material: Solid concrete only (normal or reinforced)

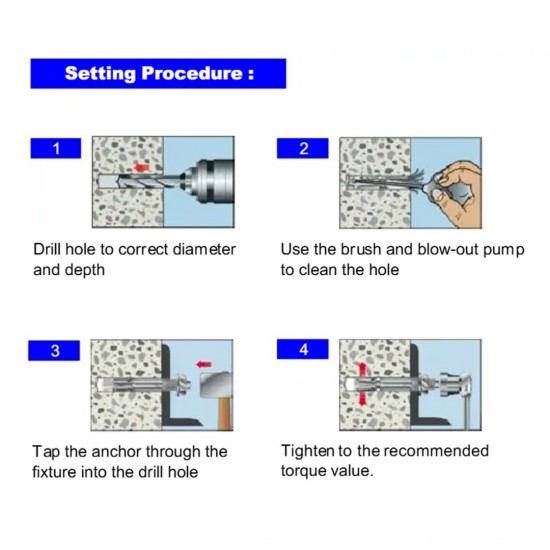

• Installation: Drill → Insert anchor → Tighten nut for expansion

Features

• Strong and reliable anchoring in solid concrete
• Zinc plating provides moderate corrosion resistance for indoor use
• Easy installation with standard tools
• Resistant to vibration and loosening
• Multiple sizes to match various load capacities
• Permanent fixing once installed
• Suitable for both vertical and horizontal applications

Uses / Applications

• Heavy-duty fixing in construction, engineering, and industrial work
• Securing machinery, steel structures, racking, and shelving

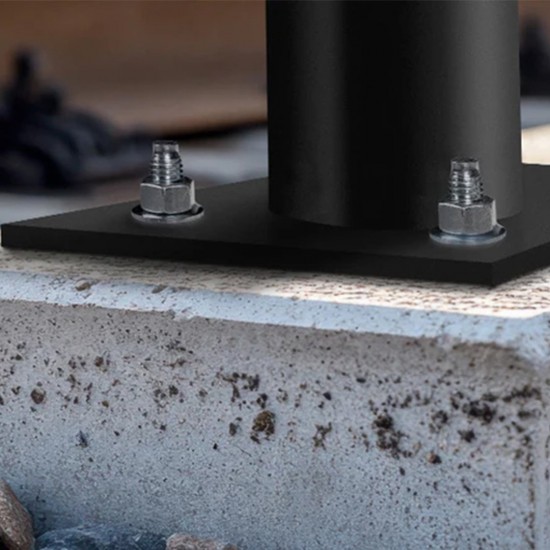

• Installing guard rails, base plates, sign boards, and brackets
• Anchoring pipelines, conduits, and cable trays
• Mounting equipment in warehouses, factories, and commercial buildings
