Home Store Precast Concrete Bollard Footing Base 375MM (L) x 375MM (W) x 450MM (H)

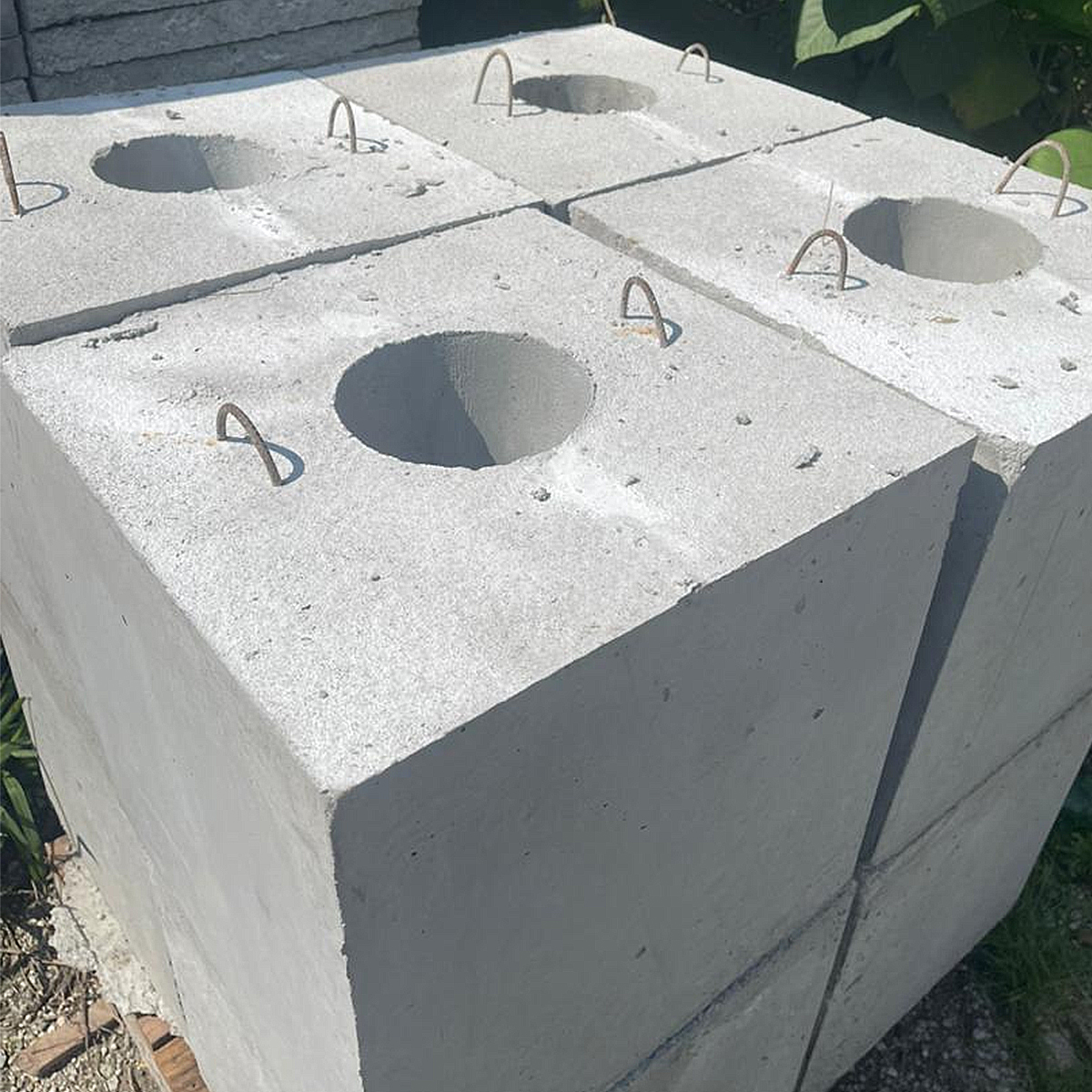

The Concrete Bollard Footing 375mm x 450mm is a precast concrete block specially designed as a stable base foundation for various structures. It features a central cavity to hold columns or posts securely and comes with lifting hooks for easy handling and installation. This product ensures strong, durable, and consistent footing compared to conventional cast-in-situ methods.

Product Specification

• Product Type: Precast Concrete Footing
• Dimension (L x W x H): 375mm x 375mm x 450mm

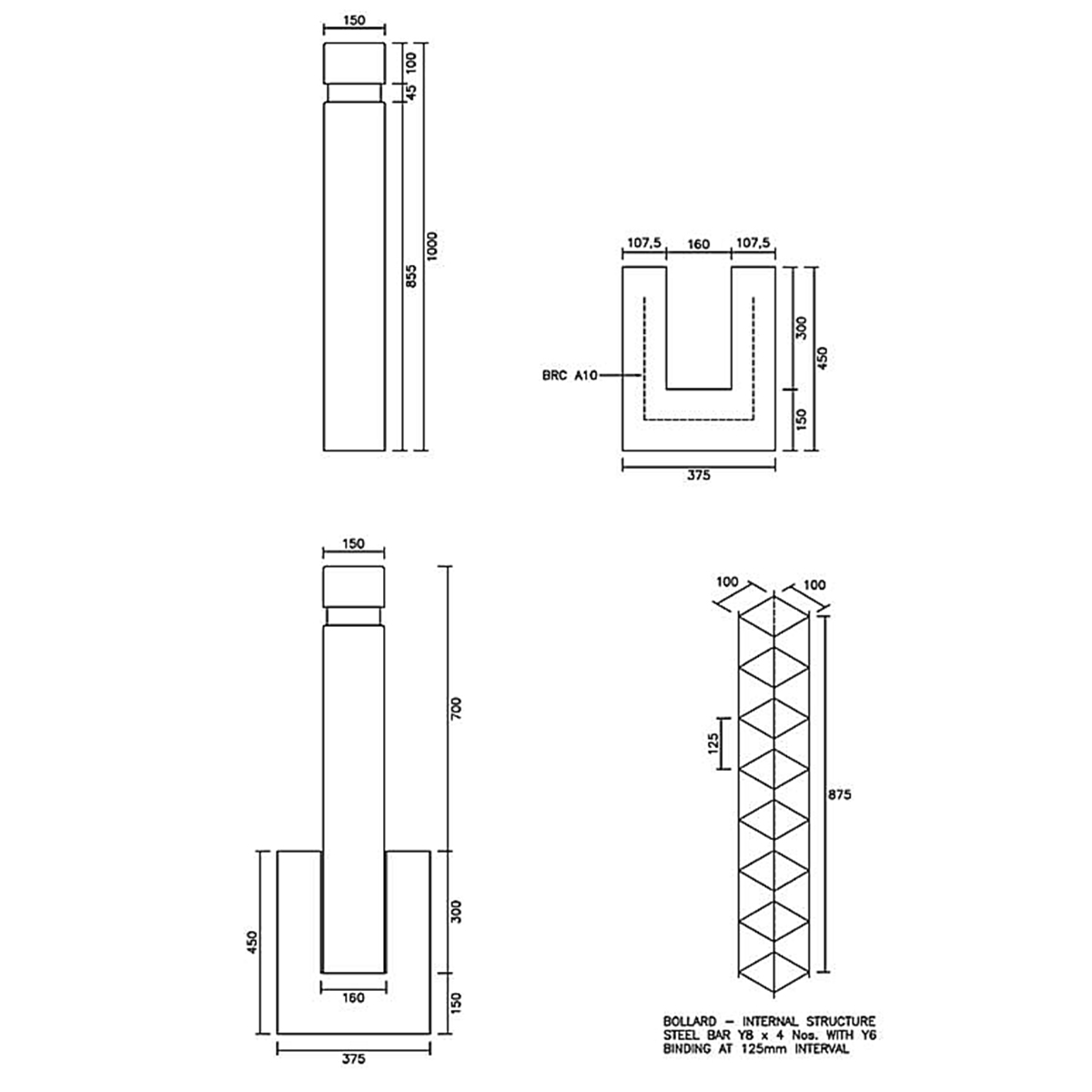

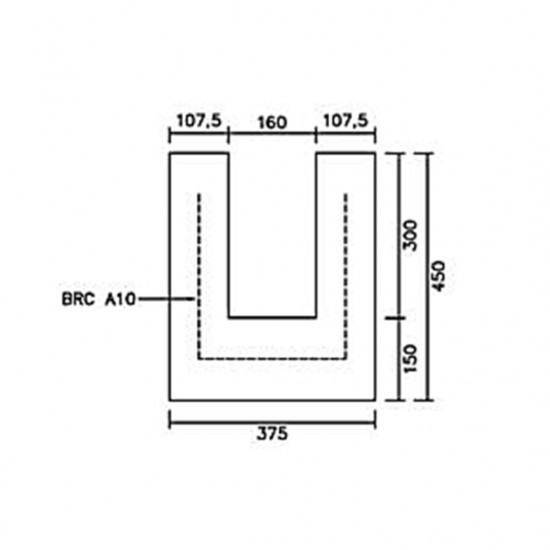

• Inner Cavity Size: 160mm x 300mm (as per technical drawing)
• Reinforcement: BRC A10 mesh (or equivalent)
• Surface Finish: Smooth grey finish

Features

• Precast & ready to install
• Lifting hooks for easy handling
• Accurate dimension & high durability

Uses

• Base foundation for precast concrete, steel, or iron fence posts.
• Support footing for small to medium structures such as canopies, gazebos, or signboards.
• Commonly used in precast fencing systems.
• Faster and cleaner alternative to cast-in-situ concrete footing.

Application

• Site Preparation – Excavate the ground to the required size.
• Placement – Position the precast footing into the hole (manual or machine-assisted depending on weight).
• Column Installation – Insert the post or column into the central cavity.
• Alignment – Ensure the column is straight and properly aligned.
• Grouting / Concreting – Fill the cavity with grout or concrete to secure the column.
• Finishing – Level and compact the surrounding soil after installation.
