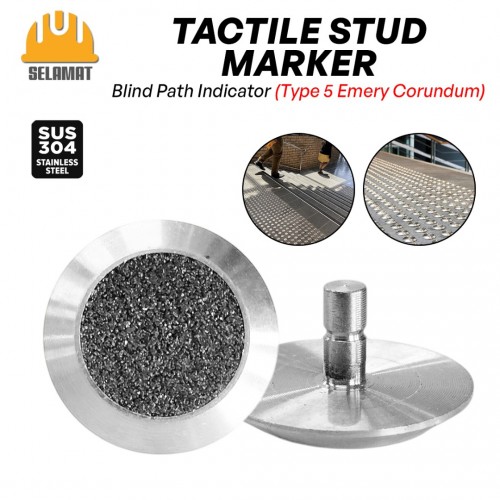

Selamat Stainless Steel 304 Tactile Blind Path Stud Marker - Type 5 Emery Corundum (1PC)
Selamat Stainless Steel 304 Tactile Blind Path Stud Marker - Type 5 Emery Corundum (1PC)
RM15.00
Price in reward points: 6000
- Brand Selamat
- Model: SLM-SSTS-T5
Products Sold: 0
Product Views: 43
Description

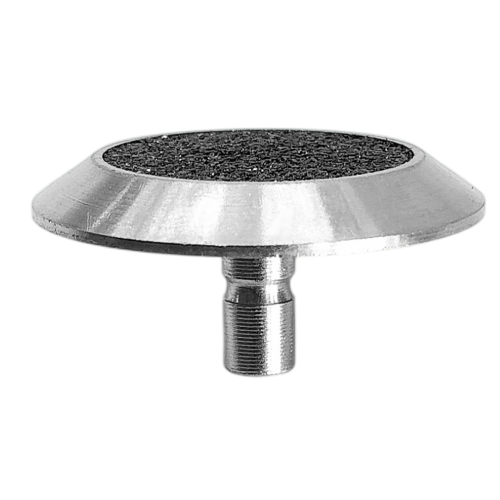

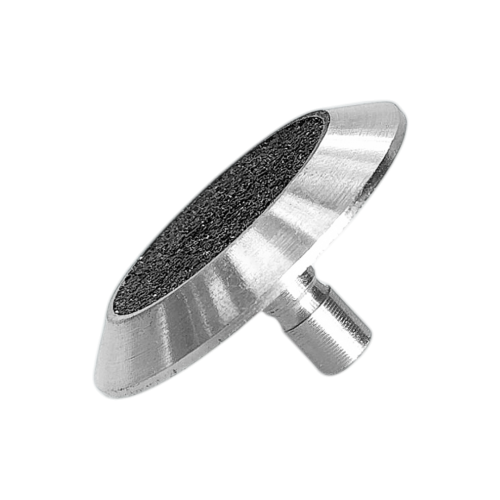

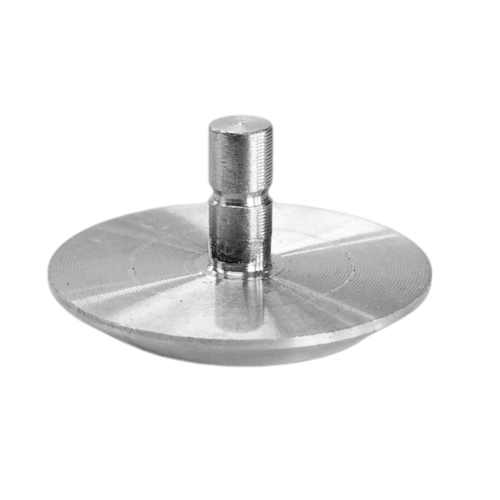

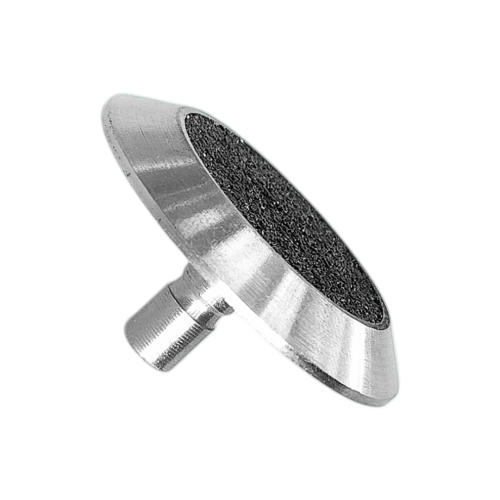

The Selamat Type 5 Emery Corundum Tactile Stud Marker is a premium tactile ground surface indicator (TGSI) that combines Stainless Steel 304 with an emery corundum anti-slip insert. It is specifically designed to offer maximum grip performance in both dry and wet conditions. Ideal for high-traffic zones or critical safety areas, it helps guide visually impaired pedestrians through tactile feedback, ensuring both function and safety in one durable unit.
Specification
- Material: Stainless Steel 304
- Design Type: Type 5 – Emery Corundum

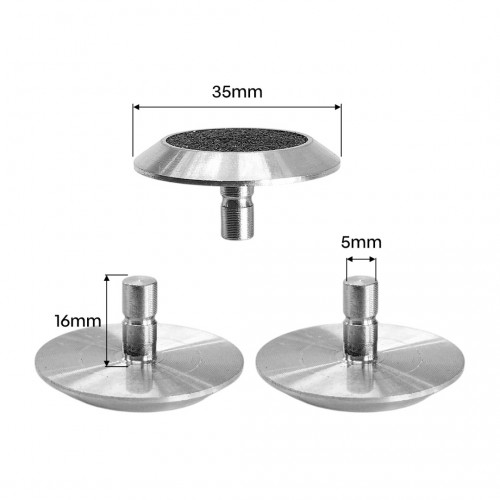

- Head Diameter: 35mm
- Thread Diameter: 5mm
- Height: 16mm
- Weight: ±30g
- Corrosion Resistant: Yes
- Anti-Slip Surface: Yes
Advantages
- Ultimate anti-slip performance – excellent in oily or wet areas
- Highly durable – suitable for extreme environments
- Premium safety design – combines aesthetics with functionality
- Resistant to corrosion, rust, wear, and high foot traffic
- Long-lasting with minimal maintenance
- Ideal for safety-critical zones like public transport stations and hospitals
Features
- Constructed using high-grade 304 stainless steel
- Emery corundum insert enhances slip resistance
- Designed for maximum tactile and visual contrast
- Suitable for indoor and outdoor applications
- Anti-vandal and weatherproof structure
- Easily integrates into modern and traditional flooring
Uses/Applications
- Used as a Tactile Ground Surface Indicator (TGSI) in public safety applications, such as:
- Pedestrian walkways
- MRT/LRT stations
- Bus terminals & airports
- Entrances to public buildings
- Accessible pathways for the visually impaired
- Indoor guidance paths in commercial buildings
How To Use/Installation Method
- Mark the installation points on the floor using a guide template or marker.
- Drill holes (6mm diameter, 15–20mm deep) using a concrete drill.
- Clean the holes of dust and debris.
- Inject epoxy or chemical adhesive into the holes.
- Screw in the tactile stud marker manually or using an installation tool.
- Allow adhesive to cure for at least 24 hours before use.
