Selamat Stainless Steel 304 Tactile Blind Path Stud Marker
- Stock: 6272
- Brand: Selamat
- Model: SLM-SST
RM9.30 - RM15.00

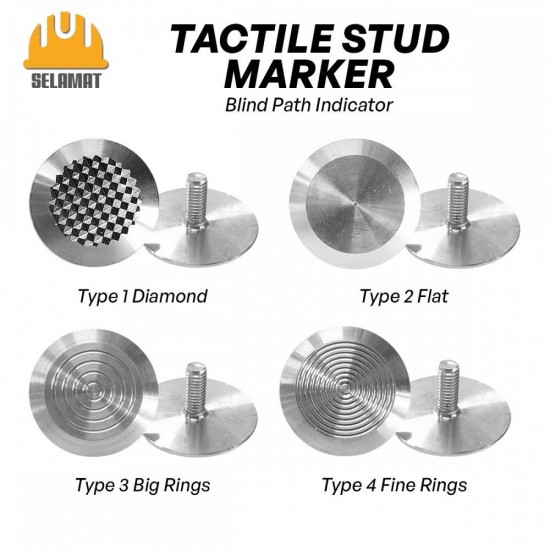

Specification

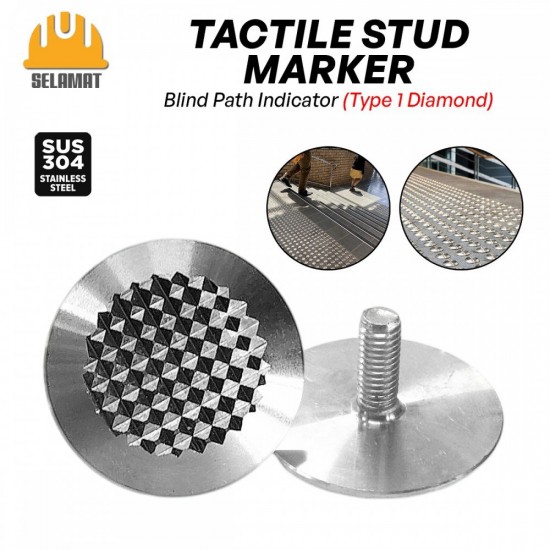

Type 1 Diamond
- Material: Stainless Steel 304
- Design Type: Type 1 – Diamond
- Head Diameter: 35mm
- Thread Diameter: 5mm
- Height: 16mm
- Weight: ±30g
- Corrosion Resistant: Yes
- Anti-Slip Surface: Yes

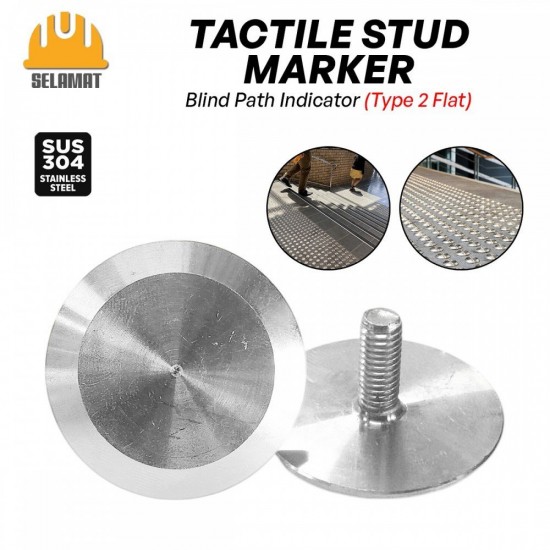

Type 2 Flat
- Material: Stainless Steel 304
- Design Type: Type 2 – Flat (Smooth Surface)
- Head Diameter: 35mm
- Thread Diameter: 5mm
- Height: 16mm
- Weight: ±30g
- Corrosion Resistant: Yes
- Anti-Slip Surface: Yes

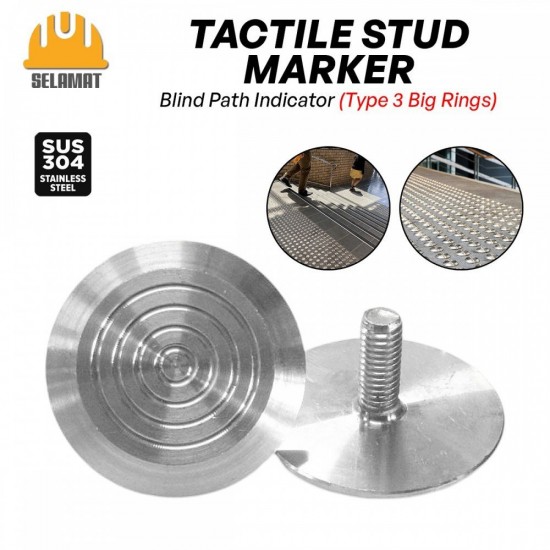

Type 3 Big Rings
- Material: Stainless Steel 304
- Design Type: Type 3 – Big Rings
- Head Diameter: 35mm
- Thread Diameter: 5mm
- Height: 16mm
- Weight: ±30g
- Corrosion Resistant: Yes
- Anti-Slip Surface: Yes

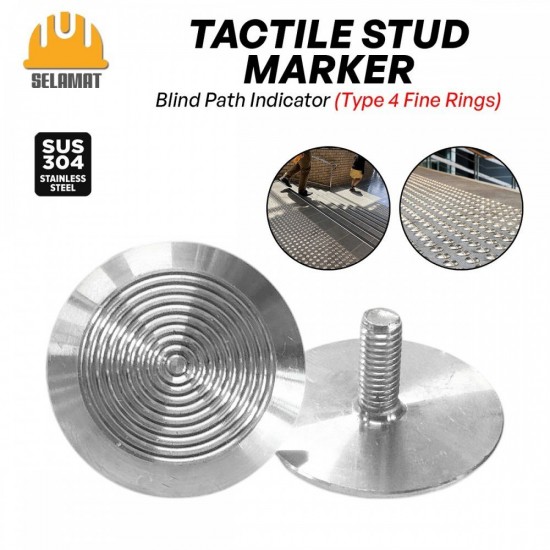

Type 4 Fine Rings
- Material: Stainless Steel 304
- Design Type: Type 4 – Fine Rings
- Head Diameter: 35mm
- Thread Diameter: 5mm
- Height: 16mm
- Weight: ±30g
- Corrosion Resistant: Yes
- Anti-Slip Surface: Yes

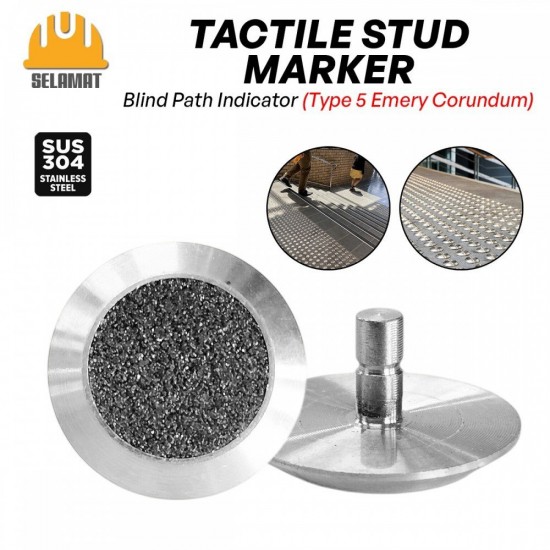

Type 5 Emery Corundum
- Material: SUS304 Stainless Steel
- Surface Type: Type 5 Emery Corundum (Head)
- Head Size: 35 mm (W)
- Thread Diameter: 5 mm
- Height: 16 mm
- Weight: Approximately 0.023 kg
- Back Design: Pin / threaded stem
- Finish: Stainless steel with corundum surface
Advantages
- High durability – made from corrosion-resistant stainless steel
- Superior slip resistance with diamond pattern
- Long service life in high traffic areas
- Weatherproof and rustproof
- Easy to install and maintain
- Suitable for retrofitting and new projects
Features
- Made with premium-grade Stainless Steel 304
- Aesthetic, modern look for integration into any flooring
- Machined for precision fit and finish
- Compatible with stone, tile, concrete, or metal substrates
- Weatherproof and vandal-resistant

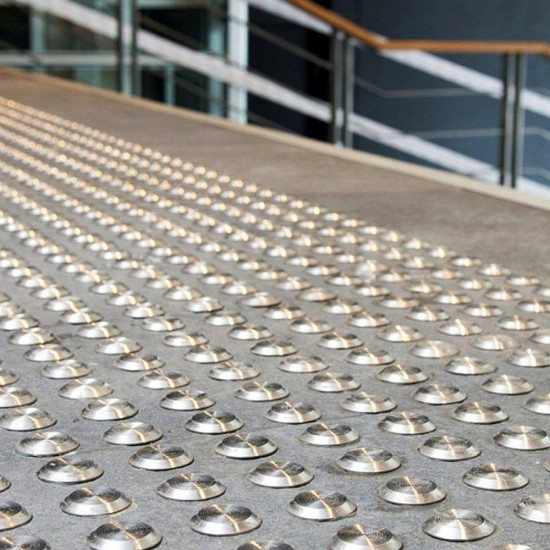

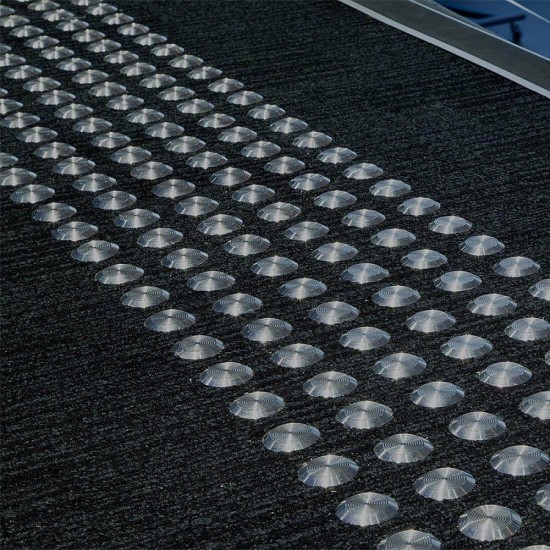

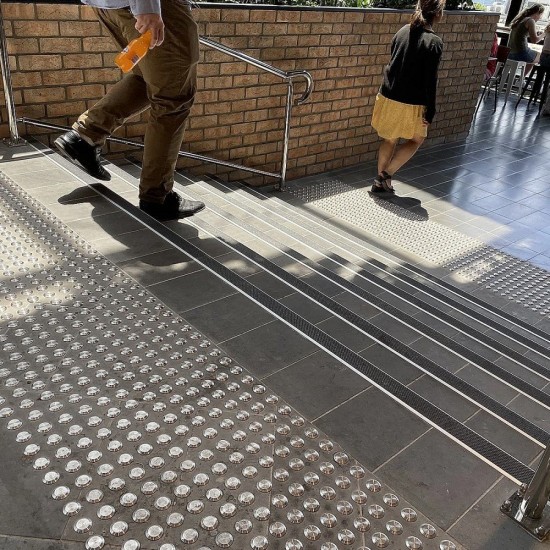

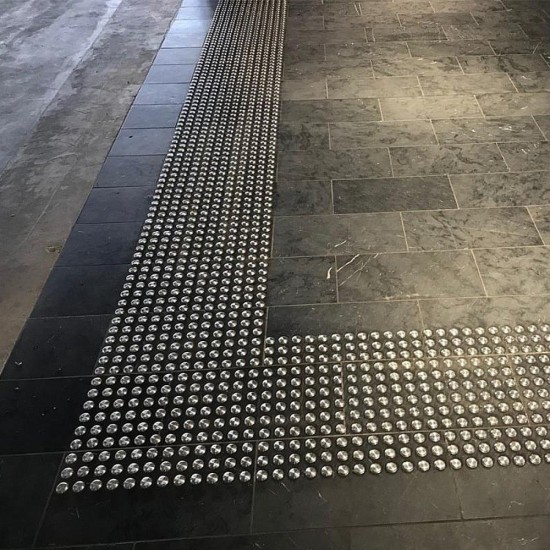

Uses/Applications
- Used as a Tactile Ground Surface Indicator (TGSI) in public safety applications, such as:
- Pedestrian walkways
- MRT/LRT stations
- Bus terminals & airports
- Entrances to public buildings
- Accessible pathways for the visually impaired
- Indoor guidance paths in commercial buildings
How To Use/Installation Method
- Mark the installation points on the floor using a guide template or marker.
- Drill holes (6mm diameter, 15–20mm deep) using a concrete drill.
- Clean the holes of dust and debris.
- Inject epoxy or chemical adhesive into the holes.
- Screw in the tactile stud marker manually or using an installation tool.
- Allow adhesive to cure for at least 24 hours before use.
