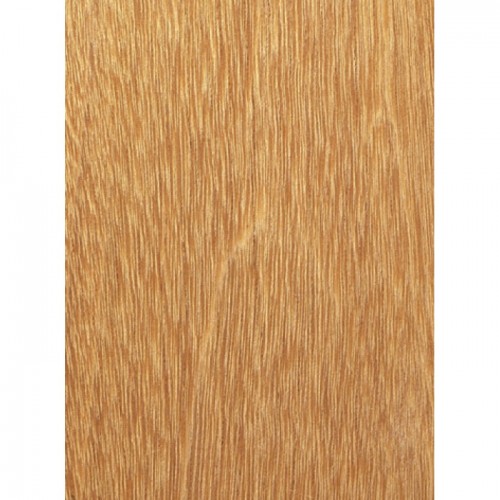

Balau Timber Edge & Surface Smooth Square Planed 1" (T) x 3" (W) x 3' (L) (Grade A)

Balau Timber Edge & Surface Smooth Square Planed 1" (T) x 3" (W) x 3' (L) (Grade A)

RM12.15
Price in reward points: 4800
  • Model: BL-1x3x3
Products Sold: 12
Product Views: 5733
Add to Cart
Click to share this page to your friends & families and start earning. Affiliate

Features

  • Species: Balau.
  • Material: Hardwood.
  • Actual Thickness: ~18mm.
  • Actual Width: ~68mm.
  • Length Available: 3', 4', 5', 6', 7'.
  • Finishing: Smooth square planed (4 Edges & 4 Surfaces) .
  • Treatment: Untreated.
  • Stability: Air drying.
  • Subject to stock availability.



Description

The Standard Malaysian Name for the heavy, yellow to brown timbers of the genus Shorea (Dipterocarpaceae). Vernacular names applied include balau (Peninsular Malaysia) with various epithets, selangan batu No. 1 (Sabah), selangan batu (Sabah and Sarawak) and other localised names too numerous to be listed here. Major species include S. atrinervosa, S. foxworthyi, S. glauca, S. laevis, S. materialis, S. maxwelliana, S. submontana and S. sumatrana. The sapwood is lighter in colour and is sharply defined from the heartwood, which is yellow or grey-brown and darkens to deep brown on exposure.



Also known as Selangan batu (Brunnei); Phchok (Cambodia); Sal (India); Anggelam, Balau, Bangkirai and Dammar laut (Indonesia); Mai chik khok (Laos); Thitya (Myanmar); Gisok, Malayakal and Yakal (Philippines); and Aek, Ak, Balao, Takhian-samphon, Teng and Rang (Thailand).



Density

The timber is a Heavy Hardwood with a density of 850-1,155kg/m3 air dry.



Natural Durability

The heartwood of this timber is naturally durable, but the sapwood is liable to fungal infestation.  Under graveyard testing, untreated specimens (50 mm x 50mm) of balau kumus hitam (S.maxwelliana) gave alife-span of 15.8 years, which made it one of the most durable timber tested in Peninsular Malysia (Jackson, 1965).  Other test result recorded by Jackson include S. laevis (8 years) and S.glauca (7 years).  In a later series of tests, Dahlan & Tam (in press) reported that S.laevis lasted 7.4 years, thus confirming the result obtained by Jackson. Balau is thus placed in the durable class with some species classified as extremely durable.  Treated specimens of balau laut (50 mm x 50 mm x 600 mm) gave an average service life of 11 years.  Untreated railway sleepers (125mm x 237 mm x 1,950 mm) of balau kumus hitam and balau laut lasted a minimum of 15 years and 11 years respectively.



Preservative Treatment

The timber is extremely resistant to treatment with preservatives.



Texture

Texture is fine and even, with deeply interlocked grain.



Strength Properties

The timber falls into Strenght Group A (Engku, 1988b) or SG 1 (MS 544:Part 2:2001).



SpeciesTest ConditionModulus of Elasticity (MPa)Modulus of Rupture (MPa)Compression parallel to grain (MPa)Compression prependicular to grain (MPa)Shear Strength(MPA)
S.glauca

Green

19,400

115

60.3

7.52

12.1
S.laevis

Green

18,400

121

68.8

9.52

12.9

   Air dry

 20,10014276.09.7915.0
S.maxwelliana

Green

22,100

125

70.6

12.62

11.5



Machining Properties

It is moderately easy to difficult to resaw and easy to difficult to cross-cut.  Planing is easy to difficult and the planed surface is smooth to moderately smooth.



SpeciesTest Conditions

Sawing

PlaningBoringTurning
Resawing

Cross Cutting

Ease of planingQuality of FinishEase of boringQuality of FinishEase of TurningQuality of Fininh
S.glaucaGreenModerately Easy

Slightly Difficult

Moderately EasySmoothEasySmooth--
Air drySlightly Difficult

Difficult

Slightly DifficultModerately SmoothSlightly DifficultSmoothEasySmooth
S.laevisGreenModerately Easy

Easy

EasySmoothEasySmooth--
Air drySlightly Difficult

Difficult

Slightly Difficult

Moderately

Smooth

Slightly

Difficult

SmoothEasySmooth

S.maxwelliana

GreenSlightly Difficult

Slightly Difficult

Slightly DifficultSmoothEasySmooth--
Air dryDifficult

Difficult

DifficultSmoothSlightly DifficultSmoothEasySmooth



Nailing Properties

Nailing property is rated as very poor.



Air Drying

The timber seasons very slowly,  with severe end-checking and splitting, moderate surface- checking and staining  as the main sources of defects. 13 mm thick boards take 4 months to air dry, while 38 mm thick boards take 8-10 months.



Kiln-Drying

Kiln Schedule B is recommended.



Schedule Kiln B
Moisture Content (%)Temperature (Dry Bulb)Temperature (Wet Bulb)Relative Humidity (%) (approx.)
°F°C°F°C
Green10540.510138.085
4010540.59937.080
3011043.510239.075
2511546.010540.570
2013054.511546.060
1514060.011847.550



Shrinkage

Shrinkage is high, with radial shrinkage averaging 1.8% and tangential shrinkage averaging 3.7%.



Defects

The heartwood is very seldom attacked by boring insects, but the sapwood, however, is liable to infestation by powder-post beetles.  Spongy heart and compression failure are unusual except in large, somewhat overmature trees (Thomas, 1958), Occasionally, resin pockets filled with solidified resin may be found.  A tangential zone of abnormal tissue with abundant intercellular canals and extending longitudinally for considerable distances may also be found.



Uses

The timber is suitable for all forms of heavy construction, marine construction, ship and boat building (keels, keelsons and framework), piling, beams, columns (heavy duty), bridges, wharves, cooling tower (structural member), railway sleepers, vehicle bodies (framework and floor boards), boat building, plywood, joinery, cabinet making, mallets, fender supports, door and window frames, staircase (carriage, newel and stringer), pallets (heavy and permanet type), tool handles (impact), telegraphic and power transmission posts and cross arms, posts, joists, rafters, flooring (heavy traffic), decking and heavy duty furniture.
