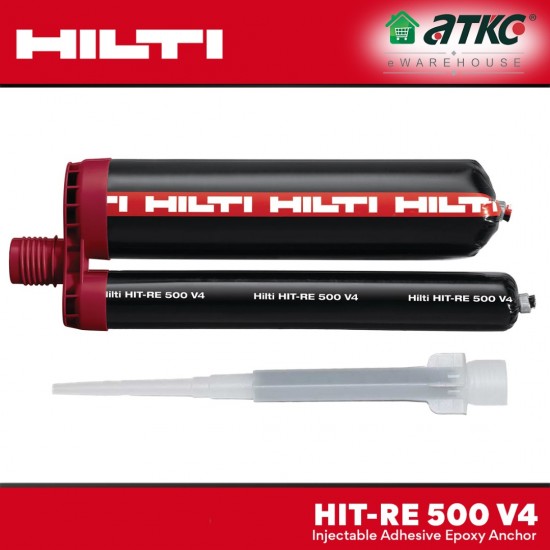

Hilti HIT-RE 500 V4 Epoxy Injectable Adhesive Anchor 500ML

High-performance injectable epoxy adhesive anchor designed for heavy-duty anchoring and post-installed rebar connections in concrete. It delivers extremely strong bond strength and is approved for structural applications including seismic and fire-rated installations.

Specification

Type: Injectable epoxy adhesive anchor

• Volume: 500 ml cartridge
• Base Material: Cracked / uncracked concrete
• Base Material Condition: Dry, wet, water-filled or submerged holes
• Anchoring Elements: Threaded rods, internally threaded rods, reinforcing bars
• Approvals: ETA, Fire resistance, Seismic approval
• Service Temperature Range: approx. −40°C to +75°C
• Storage Temperature: 5°C – 25°C
• Shelf Life: Approx. 12 months (unopened cartridge)

Features

• Ultimate-performance epoxy mortar for heavy structural anchoring
• High bond strength for demanding applications and cracked concrete
• Suitable for deep embedment and large diameter anchors
• Works in wet, water-filled, or underwater drilled holes
• Approved for seismic, fire-rated, and fatigue-loaded structures
• Compatible with Hilti PROFIS engineering design software

Application

• Post-installed rebar connections in concrete structures

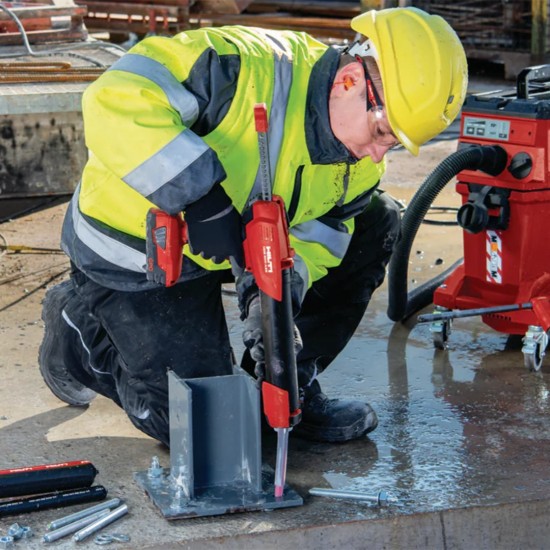

• Anchoring structural steel columns, beams, and baseplates
• Installation of heavy machinery or equipment anchors
• Concrete-to-concrete structural connections
• Infrastructure projects such as bridges, tunnels, and industrial buildings

PDF:

Technical data sheet for HIT-RE 500 V3 injectable mortar in concrete
