Home Store FRP1044 Outdoor Water Filter 10'' (D) x 44'' (H) - Grey
- Stock: 11
- Model: HS-OWF-FRP1044
RM210.00
Price in reward points: 84000
Description
The Home Store FRP1044 Outdoor Water Filter is a durable multi-stage sediment filtration system designed for residential and light commercial use. Built with a strong FRP tank and operated using a manual multi-port valve, it removes sand, silt, rust, and sediment from the main water supply. The system uses the latest filtration technology, operates without electricity, and features a reverse backwash system for easy maintenance.
Specifications
- Model: FRP 1044

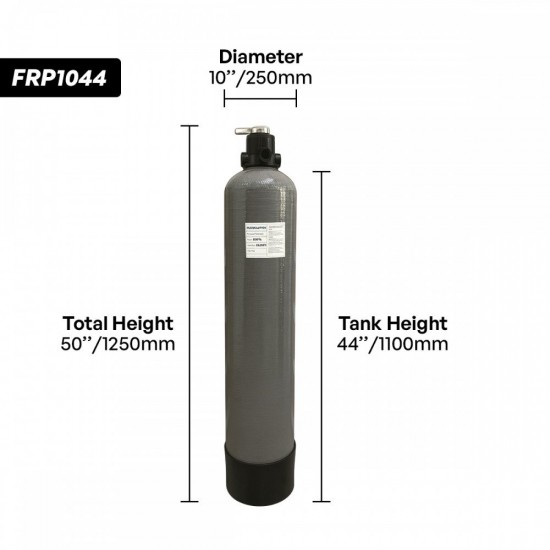

- Total Height: 50" / 1250 mm
- Tank Height: 44" / 1100 mm
- Tank Diameter: 10" / 250 mm
- Valve Size: 1" or 3/4"
- Tank Material: FRP
- Media Capacity: 40 kg
- Overall Weight: 48 kg (approx.)
- Flow Rate: 51.2 L/min
- Micron Rating: 30 Micron
- Min Working Pressure: 25 PSI
- Max Working Pressure: 120 PSI
- Max Temperature: 110°F
- Operation Modes: Backwash / Rinse / Filter
- Power Requirement: None
- Installation: Outdoor, main water inlet

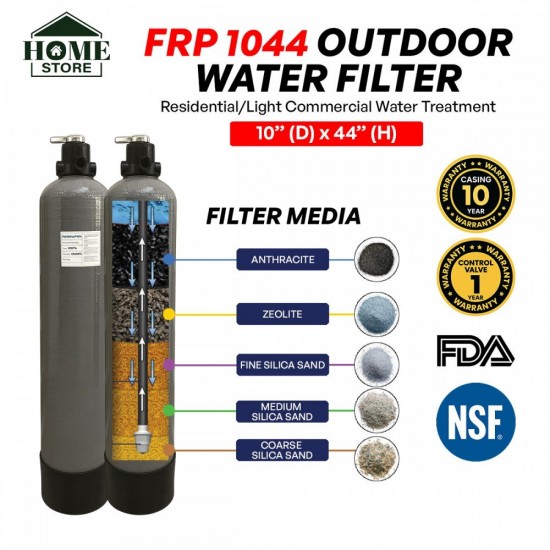

Internal Filter Layers
- Anthracite
- Zeolite
- Fine Silica Sand
- Medium Silica Sand
- Coarse Silica Sand
Features
- Latest filtration technology
- 30-micron sediment filtration performance
- Breaks water into smaller molecules
- Provides clean, safe, and hygienic water
- UV-resistant and corrosion-resistant
- Prevents moss and algae growth inside the barrel
- Non-electrical operation
- Suitable for domestic, industrial, and restaurant use
- Easy and fast installation
- Economical and low maintenance
- Multi-stage media filtration
- Reverse backwash cleaning system

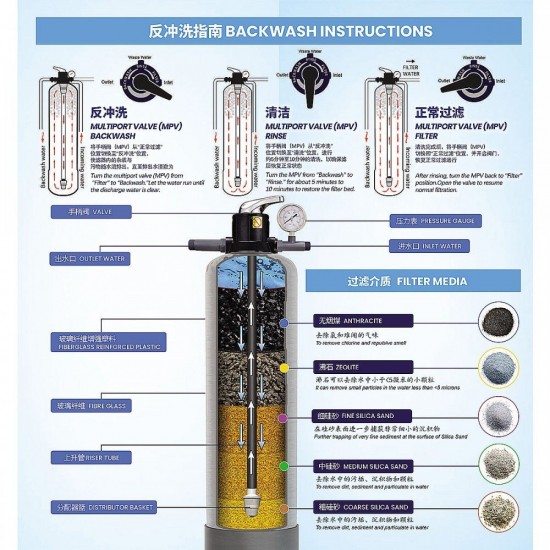

Operating Instructions
- Step 1: Backwash
- Turn the MPV to “Backwash” mode. Allow sediment to flush out until the water appears clean. Duration: 5–10 minutes.
- Step 2: Rinse
- Turn the MPV to “Rinse” mode to stabilise and clean the filtered water. Duration: 5–10 minutes.
- Step 3: Filter
- Turn the MPV to “Filter” mode to resume normal operation. The backwash process is complete and the filter functions like new.
Warranty
- Control Valve (Head): 1 Year
- FRP Tank (Body): 10 Years
Application

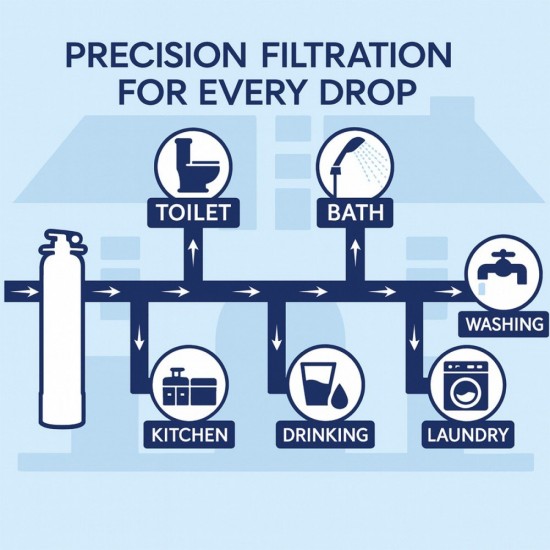

- Whole-house sediment filtration
- Residential and light commercial use
- Pre-filtration before indoor water filters
- Suitable for areas with sediment, rust, or murky water
