Home Store Stainless Steel SS1041 Outdoor Water Filter 10'' (D) x 41'' (H)
- Stock: 5
- Model: HS-OWF-SS1041
RM450.00
Price in reward points: 180000
Description
The Home Store Stainless Steel SS1041 Outdoor Water Filter is designed for effective whole-house sediment filtration. Constructed from high-quality stainless steel, it provides long-lasting durability and corrosion resistance. This unit efficiently removes sediment, rust, and suspended particles prior to entering the internal water system, making it suitable for both residential and light commercial installations.
Specifications
- Model: SS1041
- Material: Stainless Steel

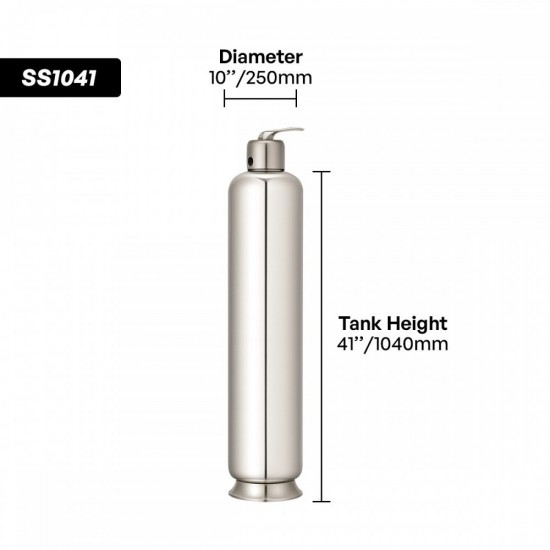

- Tank Size: 10" (Diameter) × 41" (Height)
- Valve Size: 3/4"
- Micron Rating: 30 Micron
- Working Pressure (Maximum): 10 Bar
- Working Temperature: 2°C ~ 50°C
- Max Temperature: 110°F
- Minimum Working Pressure: 25 psi
- Maximum Working Pressure: 120 psi
- Flow Rate: 52 L/min
- Media Capacity: 35 kg
- Overall Weight: 48 kg
- Operation Modes: Backwash / Rinse / Filter
- Power Requirement: None
- Installation: Outdoor, main water inlet

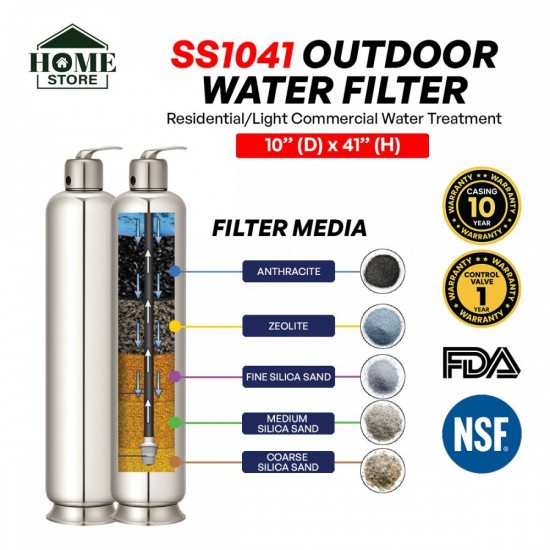

Internal Filter Media Layers
- Anthracite
- Zeolite
- Fine Silica Sand
- Medium Silica Sand
- Coarse Silica Sand

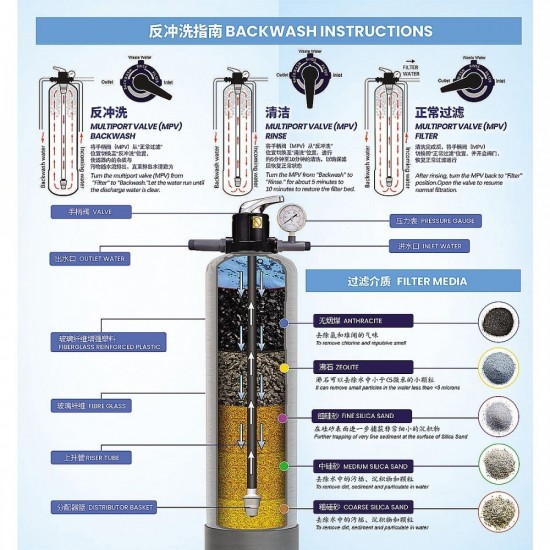

Operating Instructions
- Step 1: Backwash
- Turn the MPV to “Backwash” mode. Allow sediment to flush out until the water appears clean. Duration: 5–10 minutes.
- Step 2: Rinse
- Turn the MPV to “Rinse” mode to stabilise and clean the filtered water. Duration: 5–10 minutes.
- Step 3: Filter
- Turn the MPV to “Filter” mode to resume normal operation. The backwash process is complete and the filter functions like new.
Warranty
- Control Valve (Head): 1 Year
- FRP Tank (Body): 10 Years

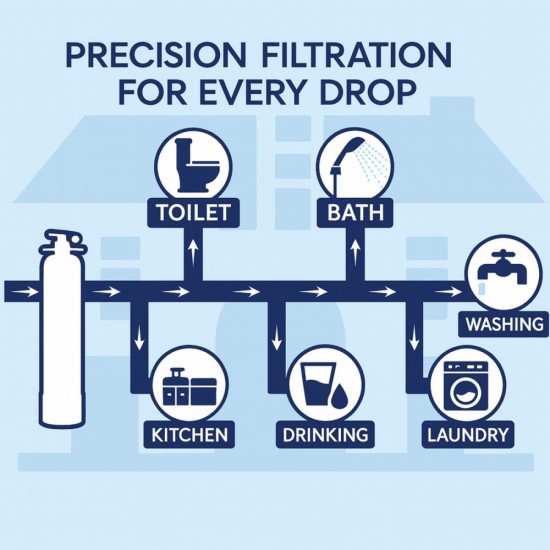

Applications
- Whole-house sediment filtration
- Residential and light commercial use
- Pre-filtration prior to indoor water filters
- Effective for water containing sediment, rust, or turbidity
