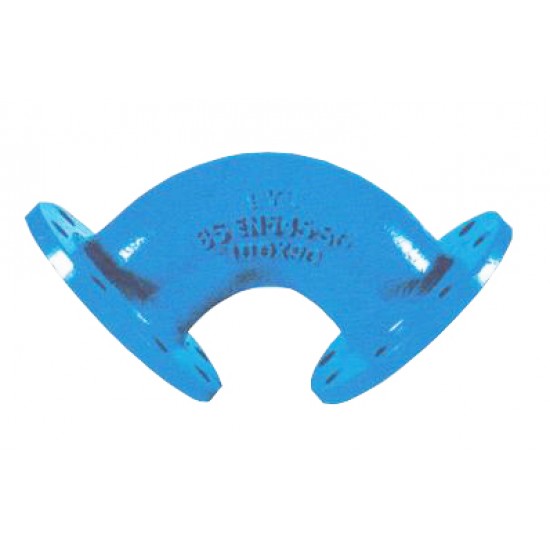

LYE Ductile Iron Double Flange 90º 300MM Bend K-12 (SIRIM)
- Stock: 8870
- Brand: LYE
- Model: LYE-DIF300
RM1,264.90
RM1,807.00
Price in reward points: 505600
Description
- Bitumin Coating Externally with IKRAM APPROVAL.
- BS EN545.
- Nominal Diameter (DN) : 300MM.
- Dimension (t) x (e): 400MM x 9.6MM.
- Wall Thickness (e): 9.6MM.
- Scope of Supply: Bitumen black coating externally, and socket rubber rings only. (Flange drilled to BS4504 PN16).
- Material: Ductile Iron Fittings.
- Origin: Suasa Unik/Engtex (Made in Malaysia).
Specification
| Nominal Diameter (DN) | (t) | (e) |
| 80 | 165 | 7.0 |
| 100 | 180 | 7.2 |
| 150 | 220 | 7.8 |
| 200 | 260 | 8.4 |
| 250 | 350 | 9.0 |
| 300 | 400 | 9.6 |
| 350 | 450 | 10.2 |
| 400 | 500 | 10.8 |
| 450 | 550 | 11.4 |
| 500 | 600 | 12.0 |
| 600 | 700 | 13.2 |
| 700 | 800 | 14.4 |
| 800 | 900 | 15.6 |
