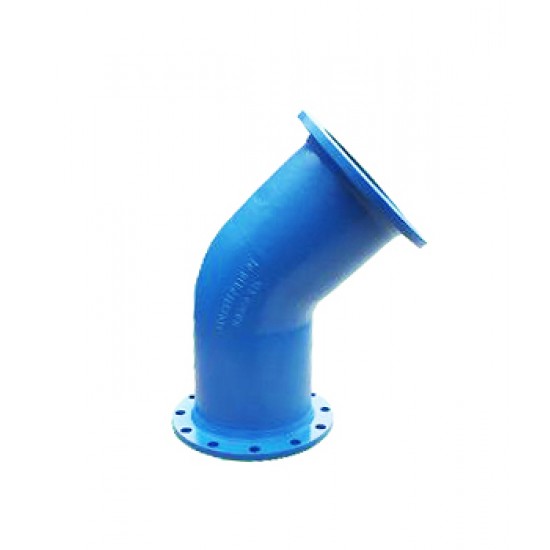

LYE Ductile Iron Double Flange 45º 800MM Bend K-12 (SIRIM)
LYE Ductile Iron Double Flange 45º 800MM Bend K-12 (SIRIM)
RM8,400.00
RM12,000.00
Price in reward points: 3360000
- Brand LYE
- Model: LYE-DF800
Products Sold: 0
Product Views: 2039
Description
- Bitumin Coating Externally with IKRAM APPROVAL.
- Conforming to BS EN545 c/w machinig & drilling, cement mortar lining internally.
- Nominal Diameter (DN) : 800MM.
- Dimension (t) x (e): 529MM x 15.6MM.
- Wall Thickness (e): 15.6MM.
- Scope of Supply: Bitumen black coating externally, and socket rubber rings only. (Flange drilled to BS4504 PN16).
- Material: Ductile Iron Fittings.
- Origin: Suasa Unik/Engtex (Made in Malaysia).
- Available in FUSION BONDED EXPOXY (FBE) Coating finishing.
Specification
| Nominal Diameter (DN) | (t) | (e) |
| 80 | 130 | 7.0 |
| 100 | 140 | 7.2 |
| 150 | 160 | 7.8 |
| 200 | 180 | 8.4 |
| 250 | 350 | 9.0 |
| 300 | 400 | 9.6 |
| 350 | 298 | 10.2 |
| 400 | 324 | 10.8 |
| 450 | 349 | 11.4 |
| 500 | 375 | 12.0 |
| 600 | 426 | 13.2 |
| 700 | 478 | 14.4 |
| 800 | 529 | 15.6 |
