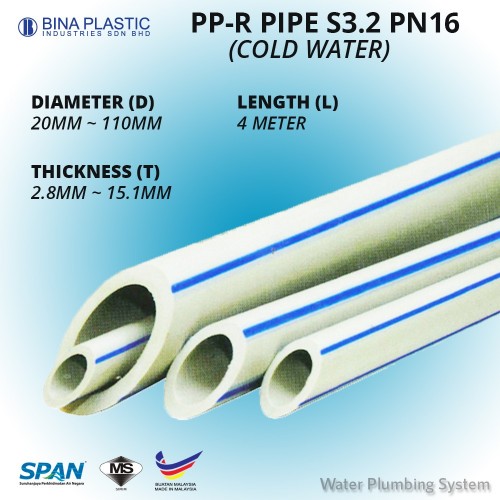

Bina Plastic PP-R Pipe PN16 S3.2 50MM (OD) x 6.9MM (T) x 4M (L) (COLD WATER) (1 LENGTH)
Bina Plastic PP-R Pipe PN16 S3.2 50MM (OD) x 6.9MM (T) x 4M (L) (COLD WATER) (1 LENGTH)
- Brand Bina Plastic
- Model: PPRP-PN16-50
Features
- Outer Diameter (MM) : 50MM.
- Min Wall Thickness (MM) : 6.9MM.
- Packaging Per Bag (PC) : 1 PCS.
Description
Polypropylene Random (PP-R) is light in weight yet with high impact strength and offers good abrasion and chemical resistance. PP-R is suitable for working use at temperature up to 90ºC. PP-R piping systems are widely used in industrial processing including cold and hot water application, air conditioning and heating.
Bina Plastic's piping system complies with EN ISO 15874, and fulfill the requirement of different application: pipes for hot water (PN20) and cold water (PN10), socket fusion fittings and metal transition fittings.
 |  |
| PN10 and PN16 PP-R Pipes | PN20 PP-R Pipes |
| Nominal SIze DN/OD (mm) | Mean Outside Diameter (mm) | Type of Pipe | |||
| PN 10 | PN 16 | PN 20 | |||
| SDR 11 | SDR 7.4 | SDR 6 | |||
| S 5 | S 3.2 | S 2.5 | |||
| min | max | Wall Thickness (mm), min | |||
| 20 | 20.0 | 20.3 | 1.9 | 2.8 | 3.4 |
| 25 | 25.0 | 25.3 | 2.3 | 3.5 | 4.2 |
| 32 | 32.0 | 32.3 | 2.9 | 4.4 | 5.4 |
| 40 | 40.0 | 40.4 | 3.7 | 5.5 | 6.7 |
| 50 | 50.0 | 50.5 | 4.6 | 6.9 | 8.3 |
| 63 | 63.0 | 63.6 | 5.8 | 8.6 | 10.5 |
| 75 | 75.0 | 75.7 | 6.8 | 10.3 | 12.5 |
| 90 | 90.0 | 90.9 | 8.2 | 12.3 | 15.0 |
| 110 | 110.0 | 111.0 | 10.0 | 15.1 | 18.3 |
