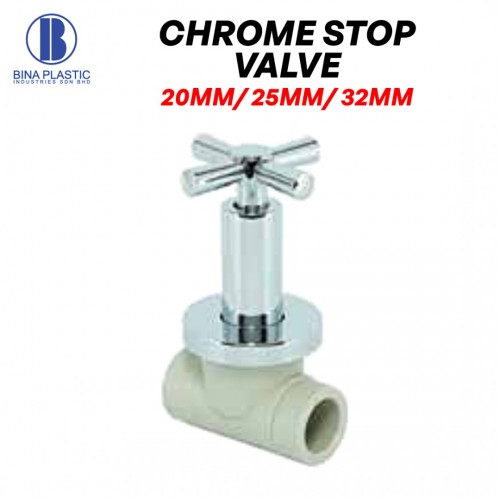

Bina Plastic PP-R Fittings Chrome Stop Valve Cold & Hot Water 20MM/ 25MM/ 32MM

Description

This stop valve features a chrome-plated finish, providing both aesthetic appeal and corrosion resistance. It is available in sizes of 20mm, 25mm, and 32mm, making it suitable for a range of piping systems. The valve is designed for easy installation and operation, ensuring efficient control over water flow.

Specification

• Material: Polypropylene Random Copolymer (PP-R) with chrome-plated components

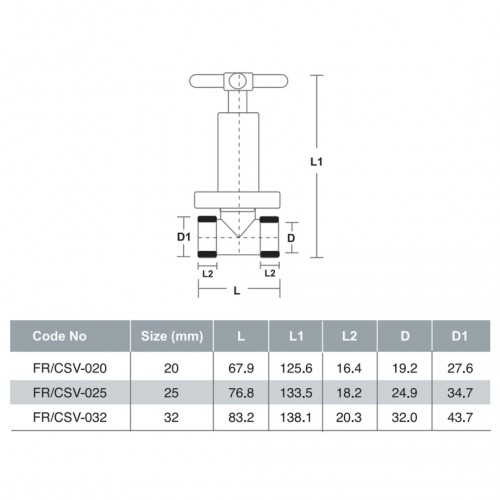

• Sizes Available: 20mm, 25mm, 32mm
• Working Pressure: Up to 25 bar
• Working Temperature: -35°C to 110°C
• Connection Type: Socket fusion and mechanical connections
• Standards Compliance: EN ISO 15874, DIN 8077/8078
• Certifications: ISO 9001, ISO 14001, CE, SGS, TUV, BV
• Color: Off-White

Key Features

• High Temperature Resistance: Capable of withstanding temperatures up to 95°C.
• Non-Toxic: Free from heavy metal additives, ensuring safe drinking water.
• Corrosion Resistant: Resistant to chemical and electrochemical corrosion.
• Efficient Flow: Smooth interior walls reduce pressure loss and increase flow capacity.
• Long Service Life: Designed to last over 50 years under normal conditions.
• Eco-Friendly: Recyclable materials and environmentally friendly production processes.
• Easy Installation: Lightweight design simplifies handling and installation.

Applications

The Bina Plastic PP-R Chrome Stop Valve is suitable for various applications, including:

• Distribution of hot and cold water in residential, commercial, and industrial buildings
• Potable water systems
• High and low-temperature heating systems
• Solar energy systems
• Air conditioning systems
• Agricultural irrigation
• Swimming pool facilities
