- Stock: Out Of Stock
- Brand: DongCheng
- Model: DC-DCKIT49BK

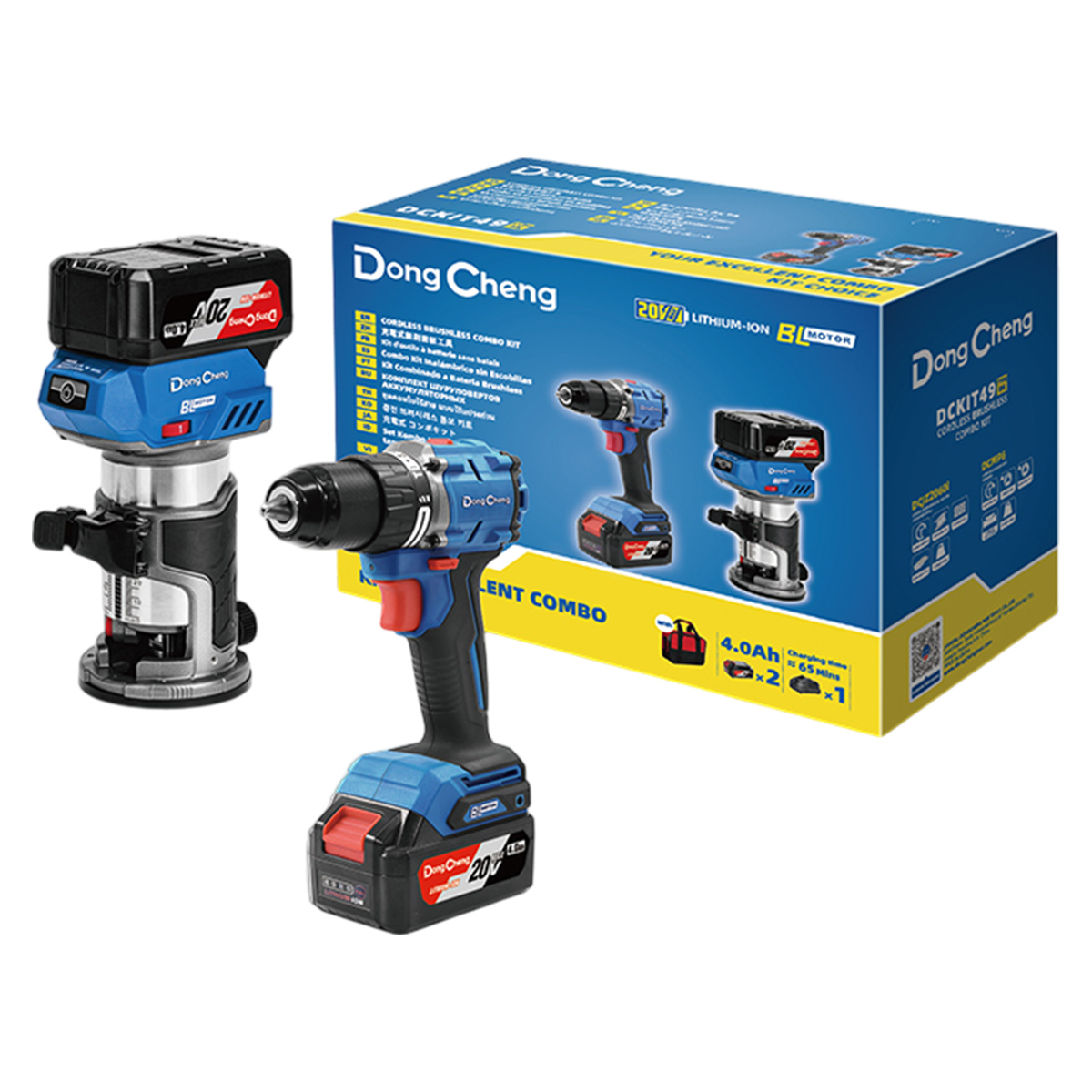

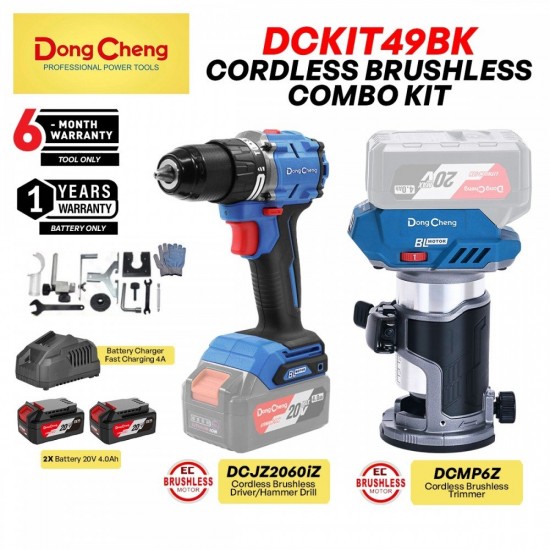

The Dong Cheng DCKIT49BK is a professional-grade cordless brushless combo kit comprising the DCJZ2060i Driver/Hammer Drill and the DCMP6 Trimmer. Engineered for high performance, efficiency, and durability, this 20V system is powered by a 4.0Ah lithium-ion battery that ensures extended runtime for continuous operation. The brushless motor technology provides increased power output, reduced maintenance, and improved tool lifespan, making it ideal for demanding drilling, hammering, and trimming applications.
Specifications
Driver/Hammer Drill (DCJZ2060iZ)

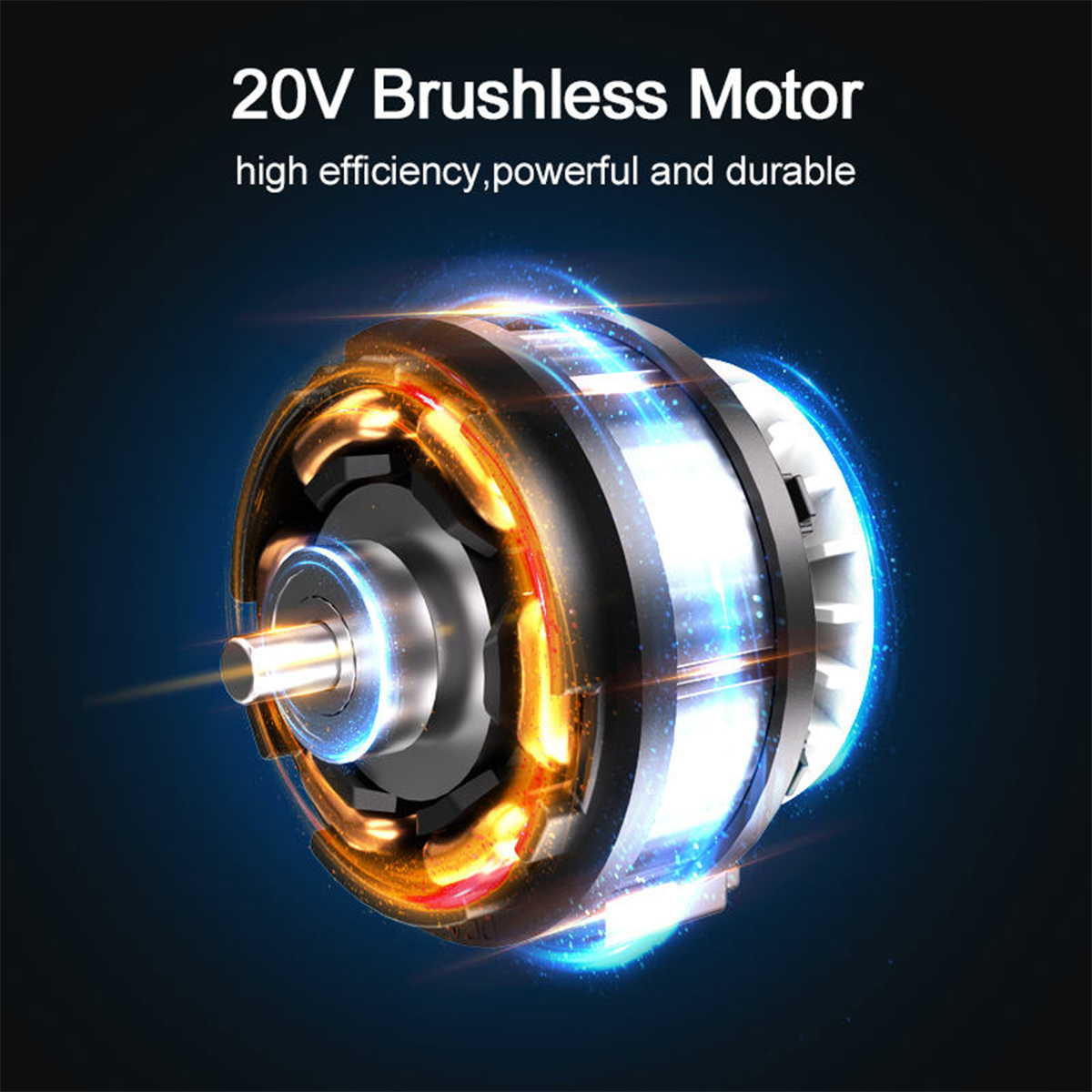

- Motor Type: Brushless
- Voltage: 20V
- Modes: Drilling / Hammer Drilling / Screwdriving
- Max. Chucking Capacity: 13mm
- Rated Impact Frequency: 0–34,500/min
- No-Load Speed:
- 1st Gear: 0–600/min
- 2nd Gear: 0–2,300/min
- Max. Drilling Diameter:
- Steel: Ø13mm
- Brick Wall: Ø13mm
- Wood: Ø38mm
- Torque Settings: 20 + 2

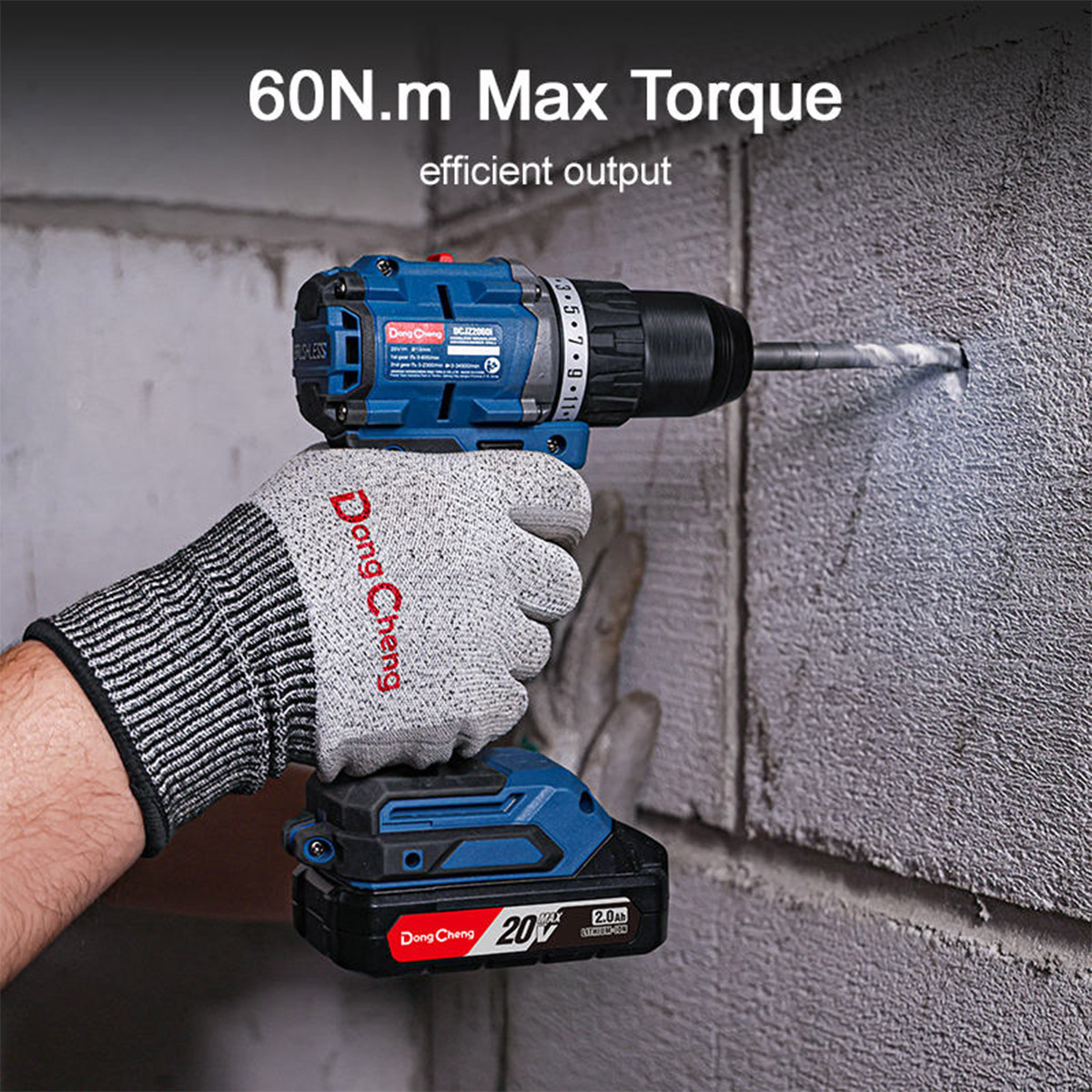

- Max. Torque: 60 N·m
Trimmer (DCMP6Z)
- Motor Type: Brushless
- Voltage: 20V
- Rated Power: 600W

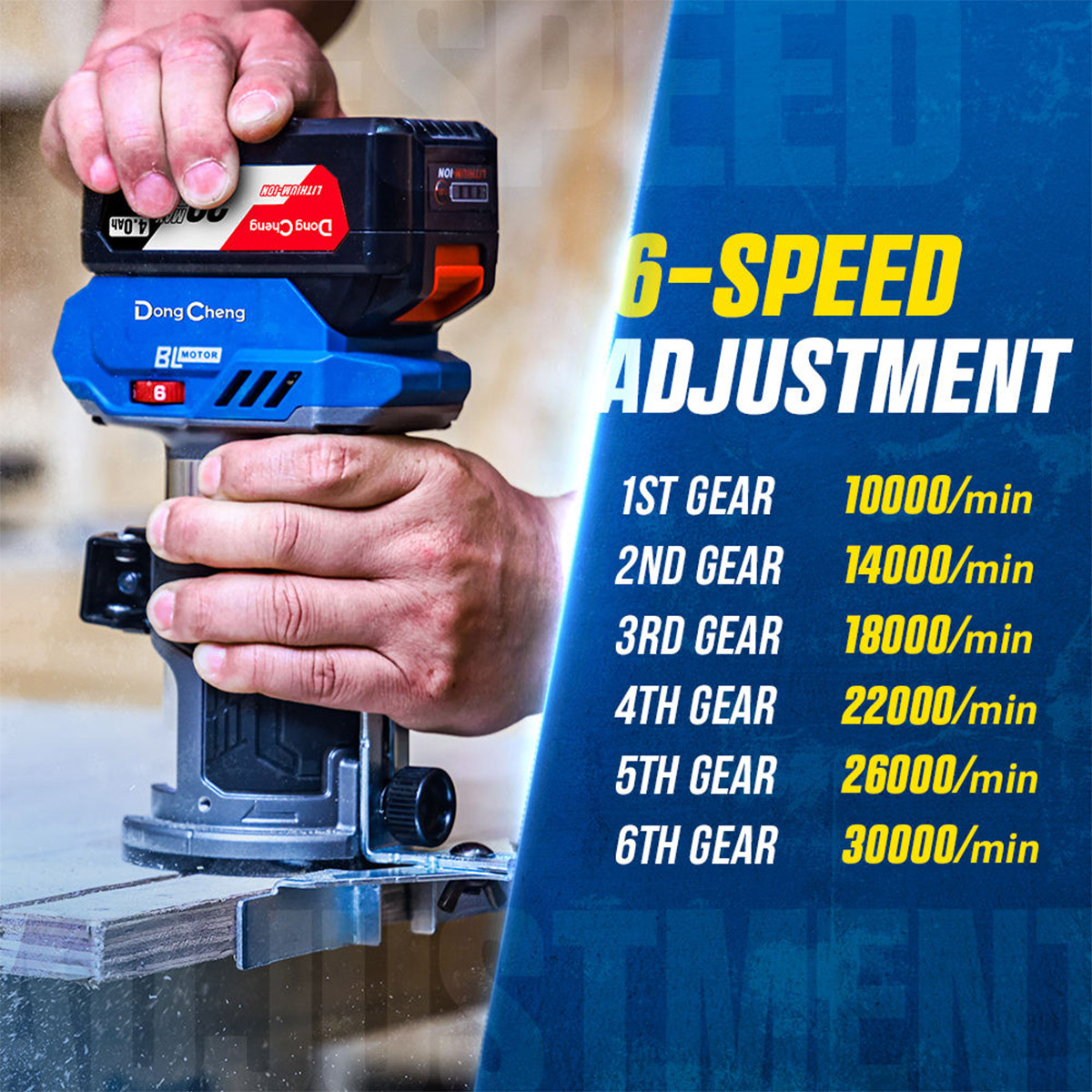

- Speed Adjustment: 6-speed dial
- No-Load Speed: High-speed precision trimming
- Base Options: Multiple optional bases for various trimming applications
- Application Capability: Wood trimming, edge profiling, and routing tasks
- Dust Collection: Compatible with a dust extraction system
Battery & Charger
- Battery Capacity: 20V 4.0Ah Li-ion
- FFCL20-04 Battery Charger Fast Charging 4A
Warranty
- 6 Months Warranty – Tools Only
- 1 Year Warranty – Battery Only
Features
- High-efficiency brushless motor for superior power and longer lifespan.
- Cordless 20V platform providing mobility and convenience for on-site work.
- Multi-mode functionality on the drill for drilling, hammering, and screwdriving.
- Precision trimming capability with adjustable depth control on the trimmer.

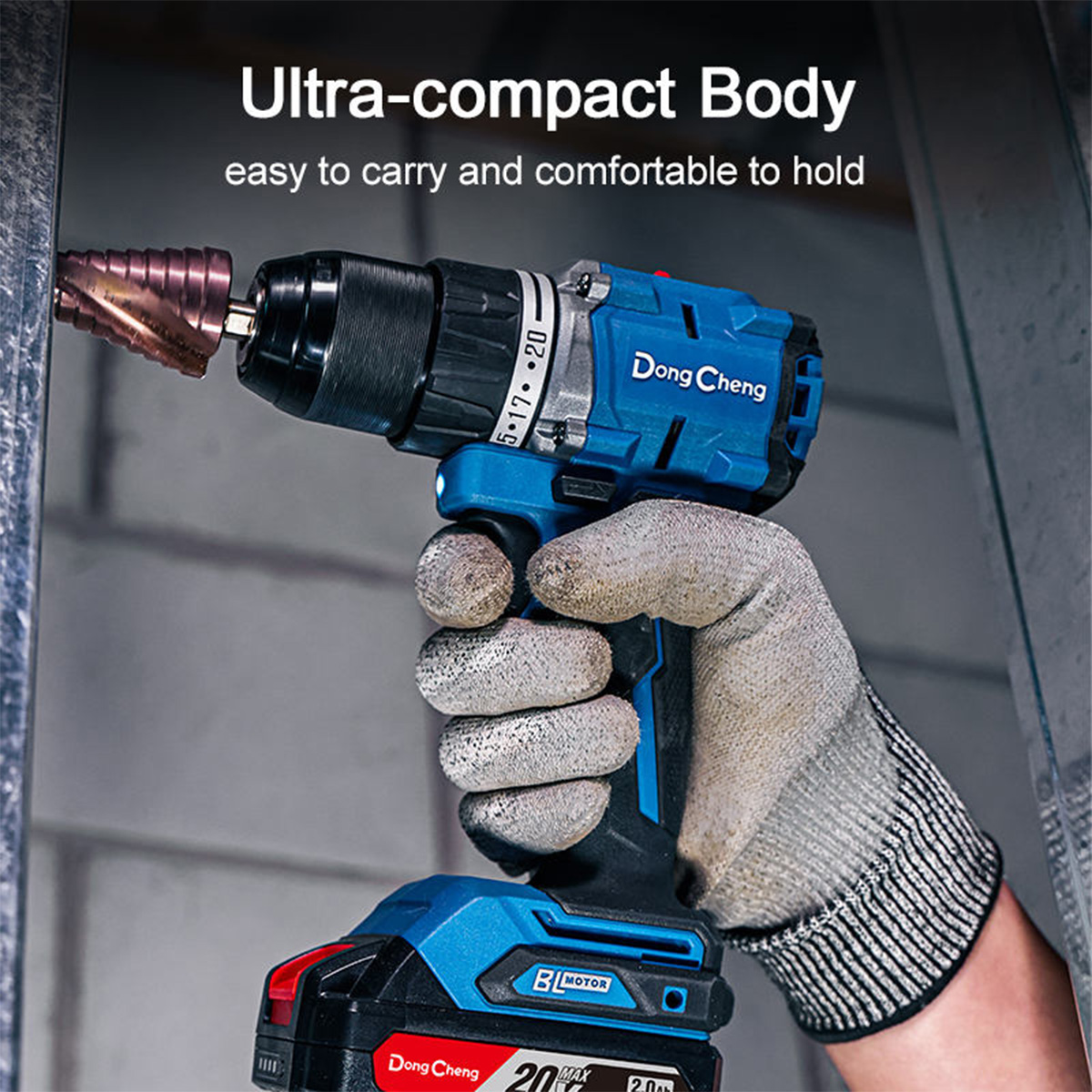

- Ergonomic, compact, and lightweight design for comfortable extended use.
- Fast-charging battery system with durable 4.0Ah capacity for extended runtime.
- Designed for heavy-duty professional and DIY applications.
Battery Runtime (Estimated)
Actual runtime varies based on material hardness, load, speed, and usage pattern.
DCJZ2060i Driver / Hammer Drill
- Light Load (wood drilling, screwdriving): 45–70 minutes
- Medium Load (metal drilling): 25–40 minutes
- Heavy Load (hammer mode into masonry): 10–20 minutes
DCMP6 Trimmer
- Light trimming/edge profiling: 20–30 minutes
- Heavy routing / deep cuts: 10–18 minutes
Application
Suitable for:
- Woodworking, furniture building, cabinetry
- Construction and renovation works
- Drilling into wood, metal, masonry (hammer mode)
- Trimming, routing, chamfering, edge profiling
- On-site installation, repair, and maintenance tasks
Accessories Included
- 20V MAX Lithium-Ion Battery 4.0Ah×2
- 4A Charger
- Driver Bit
- Belt Clip
- Wrench (3pcs)
- Straight Guide
- Templet Guide
- Trimmer Guide Assembly
- Dust Cap
- Knitted and PVC Dots Gloves
- Tool Carrying Bag
- Color Box Packing
