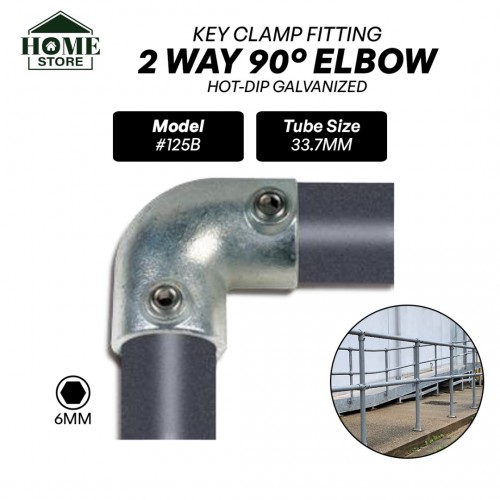

Home Store #125B 2 Way 90° Elbow Key Clamp Fitting Hot-Dip Galvanized 33.7MM
Home Store #125B 2 Way 90° Elbow Key Clamp Fitting Hot-Dip Galvanized 33.7MM
RM16.00
Price in reward points: 6400
- Model: HS-KCF125B
Products Sold: 0
Product Views: 99
Description
The #125B 2 Way 90° Elbow Key Clamp Fitting is designed to connect two tubes of 33.7mm outside diameter at a right angle (90°) to form a corner or end joint in tubular frame structures. Made using hot-dip galvanized steel, this fitting offers robust corrosion resistance, making it ideal for both indoor and outdoor applications such as handrails, guardrails, furniture frames, and other structural frameworks.
Specifications
- Type: 2 Way 90° Elbow #125B
- Pipe Compatibility: 33.7mm outer diameter (1" NB tube)
- Material: Hot-dip galvanized
- Finish: Galvanized
- Screw Size: 6mm
- Fixing Method: Secured using a hex key to tighten grub screws
- Usage: Indoor and outdoor
- Weight: 0.36kg
Features
- Durable Construction: Made from malleable cast iron for strength and long life.
- Corrosion-Resistant: Hot-dip galvanization offers superior rust protection, suitable for outdoor use.
- Simple Installation: No welding required – fits with hex key bolts for quick assembly.
- Secure Fit: Internal grub screws ensure strong connections.

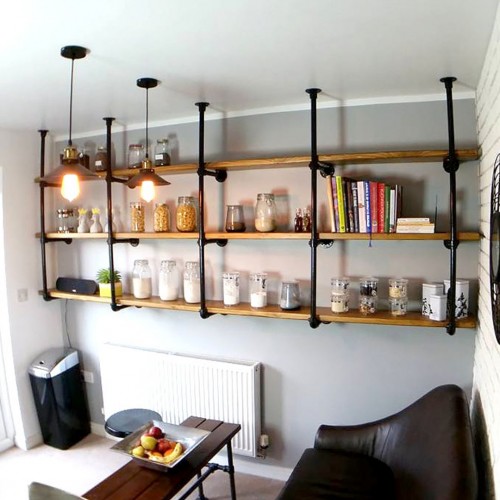

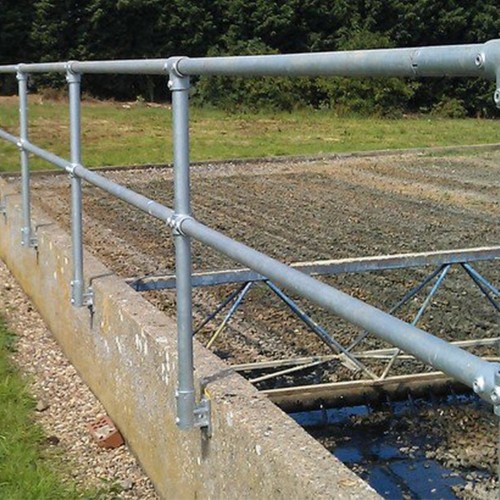

- Versatile Use: Commonly used in handrails, railings, racks, and other modular steel tube constructions.
- Reusable: Can be disassembled and reused without damage to the tubes.
