Selamat Stainless Steel 304 Tactile Blind Path Stud Marker - Type 3 Big Rings (1PC)

Description

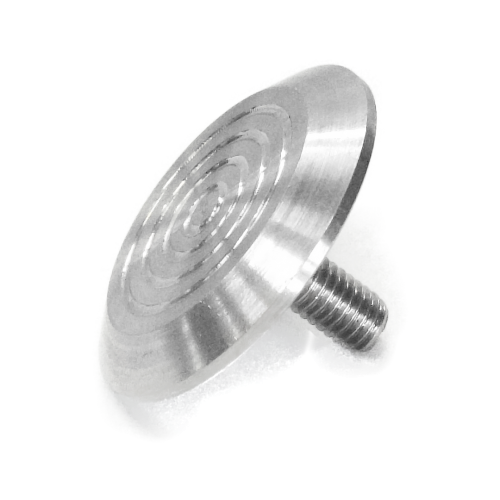

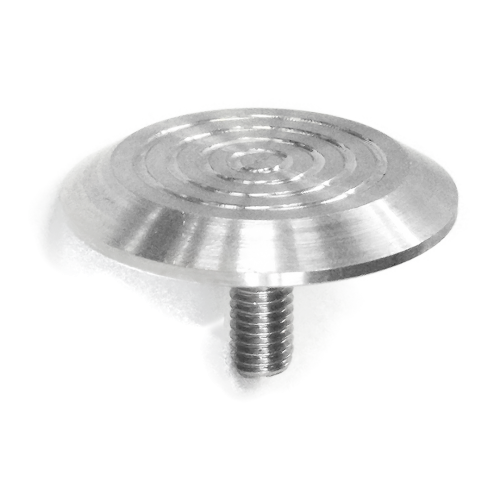

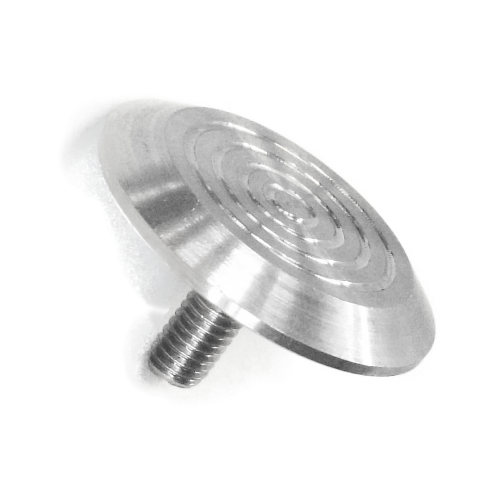

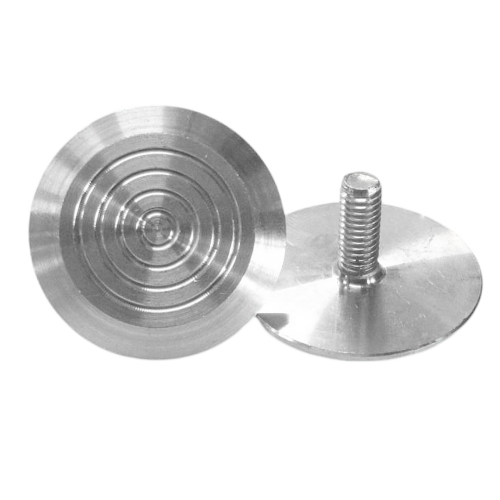

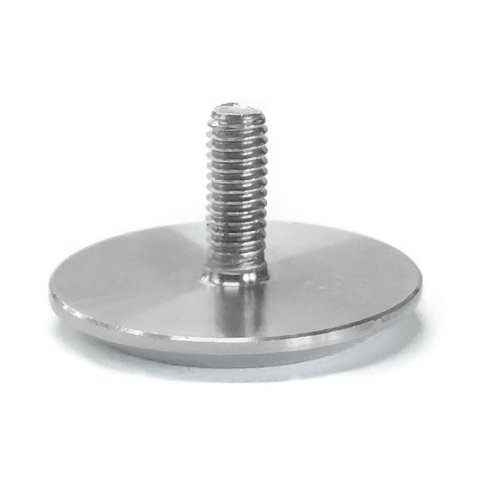

The Selamat tactile stud marker is made from high-quality 304 stainless steel, designed with a Type 3 Big Rings pattern on the head for excellent grip. It functions as a tactile guide or warning stud to assist visually impaired individuals in navigating public pathways and spaces.

Specification

• Material: Stainless Steel 304
• Design Type: Type 3 – Big Rings

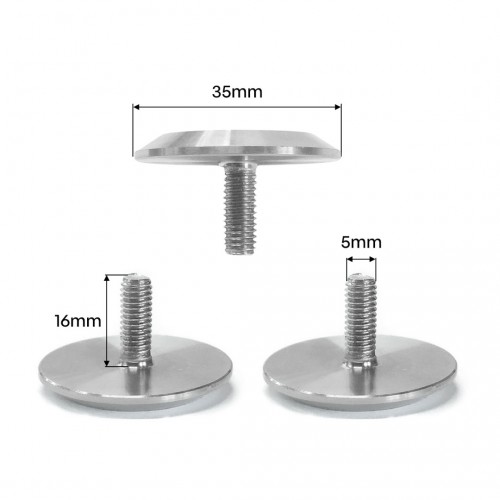

• Head Diameter: 35mm
• Thread Diameter: 5mm
• Height: 16mm
• Weight: ±30g
• Corrosion Resistant: Yes
• Anti-Slip Surface: Yes

Advantages

• Rust-Resistant: Made with 304 stainless steel for durability in all weather conditions.
• Heavy-Duty: Suitable for high-traffic areas, both indoors and outdoors.
• Ergonomic Design: Large ring texture provides tactile feedback for the visually impaired.
• Easy Maintenance: Smooth surface makes cleaning simple.
• Long-Lasting: Does not wear down easily.
• Modern Aesthetic: Clean and professional finish for floors.

Features

• Threaded base ensures firm installation.
• Anti-slip surface reduces slipping hazards.
• Big Ring Design gives strong tactile feel.
• Compatible with concrete, tiles, granite, vinyl, or asphalt surfaces.

Uses/Applications

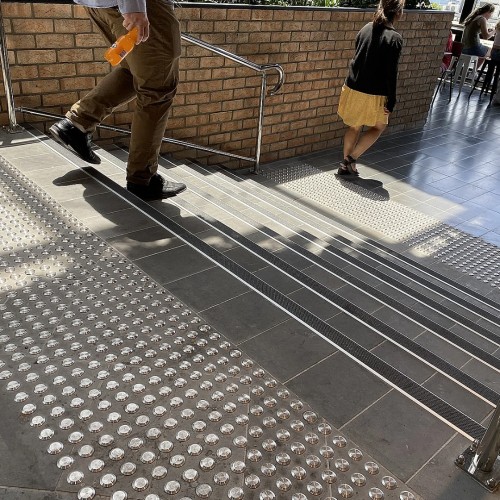

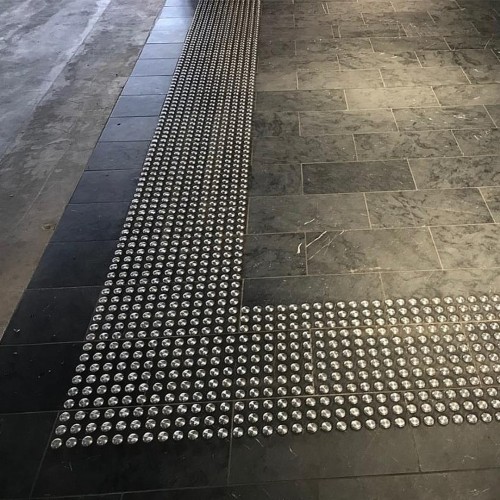

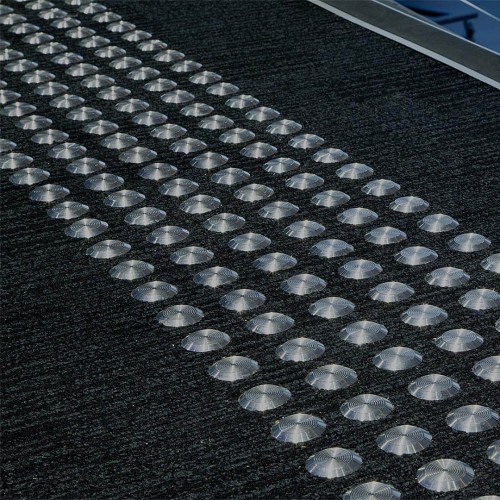

• Used as a Tactile Ground Surface Indicator (TGSI) in public safety applications, such as:
• Pedestrian walkways
• MRT/LRT stations
• Bus terminals & airports
• Entrances to public buildings
• Accessible pathways for the visually impaired
• Indoor guidance paths in commercial buildings

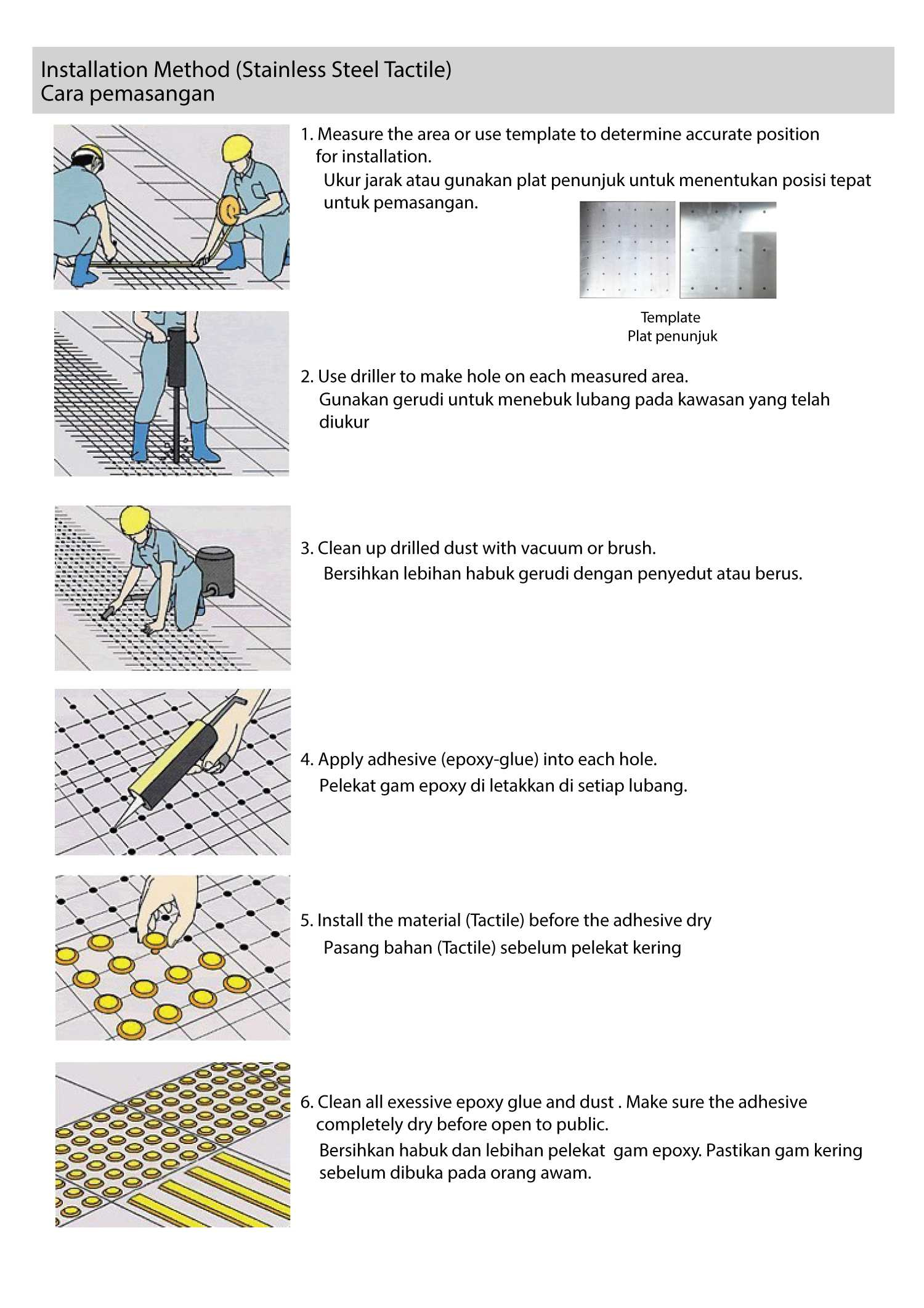

How To Use/Installation Method

1. Mark the installation points on the floor using a guide template or marker.
2. Drill holes (6mm diameter, 15–20mm deep) using a concrete drill.
3. Clean the holes of dust and debris.
4. Inject epoxy or chemical adhesive into the holes.
5. Screw in the tactile stud marker manually or using an installation tool.
6. Allow adhesive to cure for at least 24 hours before use.
