Description

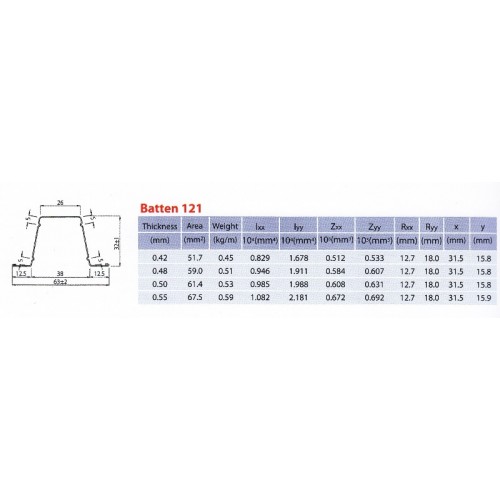

- Size: 63.0mm x 26.0mm x 32.0mm 0.48mm (T) x 6.0m (L).
- Thickness: 0.48mm.
- Weight/Length: 0.51kg/m.
- Material: Aluzinc.
Introduction

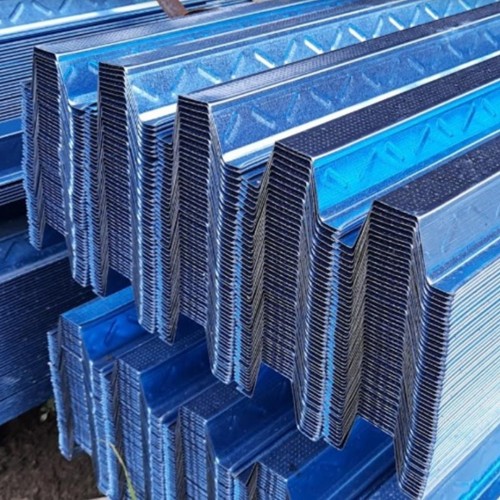

Astino Multi Truss and Battens are cold-rolled sections manufactured from structure grad galvanized steel. It provides builder with a high quality, strong, dimensionally stable and light steel section which is ideal for roofing applications. Its unique configuration delivers superior strength, stiffness and increased load capacity producing significant economies in both design and installations.
Tolerances
Astino Multi Trusses are produced within the following tolerance:
- Length : ±5mm.

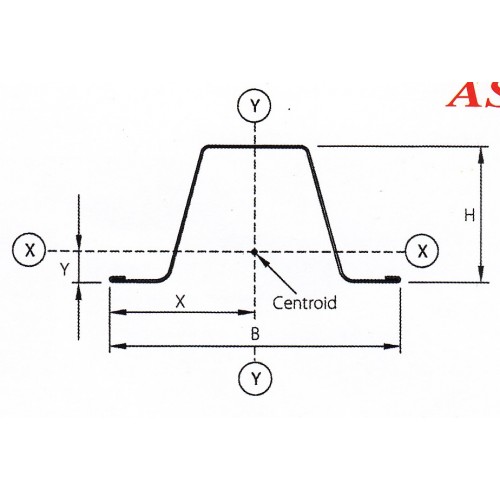

- Web (Dim.H) : ±1mm.
- Flange (Dim.B) : ±2mm.
- Thickness : ±2mm.
Disclaimer
All product images shown are for illustration purposes only. Actual products may varies in term of size, type, brand, version, colour, and other relevant characteristics.
