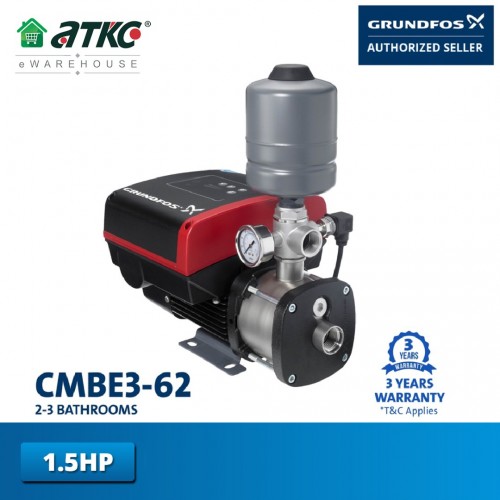

Grundfos CMBE3-62 Home Water Pressure Booster Pump 1.5HP

The Grundfos CMBE Booster is a compact booster system for water supply in domestic applications. The integrated speed controller enables the CME Booster to keep constant pressure in the pipe system.

A pressure sensor monitoring changes in the water consumption will signal to the speed controller to change the motor speed to adapt performance to the new state. The CMBE Booster is very easy to install. When the pipework has been installed, it is all a matter of plugging the unit into a socket, and the system is operational.

The CME Booster consists of

• CME pump with integrated frequency converter
• 5-way valve
• Expansion tank
• Pressure gauge

Benefits

• Perfect water pressure: Intelligent pump control adjusts operation automatically
• Easy selection: One variant for all domestic boosting needs
• Easy installation: Compact, all-in-one solution, plug-and-pump
• Easy to operate: User-friendly control panel
• Reliable operation: Dry-running protection, anti-cycling

Technical

• Pump speed on which pump data are based: 3868 rpm
• Rated flow: 6 m³/h
• Rated head: 47.8 m
• Primary shaft seal: AVBE
• Approvals and markings: CE, EAC
• Curve tolerance: ISO9906:2012 3B
• Return valve: YES
• Start pressure: Integrated Frequency converter

Electrical Data

• Power output - 1100W / 1.5HP
• Rated capacity - 4.2m3/hr / 1.2L/s
• Rated pressure - 4.5bar / 65PSI (adjustable)
• Pump connection - 1" inlet & outlet
• Pump housing - Stainless steel
• Pump impeller - Stainless steel
• Suitable for 2 to 3 bathrooms simultaneous use
• Built-in inverter coupled with intelligent pump control for maximum comfort
• Variable speed motor reduces energy use and risks of pipe over-pressure
• Quiet pump operation and product certified by SIRIM
