Nylex Hydrocell Superior Drainage Solution 600MM (L) x 500MM (W) x 30MM (H)
Nylex Hydrocell Superior Drainage Solution 600MM (L) x 500MM (W) x 30MM (H)
- Brand Nylex
- Model: NYLEX-HC
Decscription
With the rapid development taking place in many cities, many new structures such as commercial and residential high rise buildings, transport terminals, shopping malls, complexes, hotels, with car parks and recreation centers are being constructed very quickly.
In all these buildings, very often the Architecht will make use of green landscaping to soften and enhance the aesthetics of the structure at strategic locations. This has resulted in the need to provide a subsoil drainage system for green lanscaping areas in order to remove rain water during the wet season.
Understanding the need to provide an economical and efficient subsoil drainage solution, Nylex's engineers have developed Nylex hydrocell as a modular drainage cell system which combined lightweight and high compressive strength with excellent flow rate and discharge capacity plus nestability to reduce transportation costs. The design of Nylex hydrocell is engineered to suit many different applications.
Specifications
- Size: 600MM x 500MM.
- Height: 30MM.
- Weight: 2KG.
- Material: Recycled polypropylene.
- Colour: Black.
- Volume void: 27.4L.
- Service temperature: -10C° to +80C°.
- Compressive strength: >900kN.
- Discharge capacity: 360LTR/MIN. @ 1% gradient.
- Horizontal flow rate: 100LTR/MIN.
- Vertical flow rate: 1000LTR/MIN.
Application
- Horizantal Deck Drainage - Roof Garden, Planter Box.
- Infrastructure Drainage - Railway, Road.
- Wall Drainage - Retaining Wall, U-Drain, Tunnel.
- Field & Landscape - Playground, Golf Course, Sport Field.

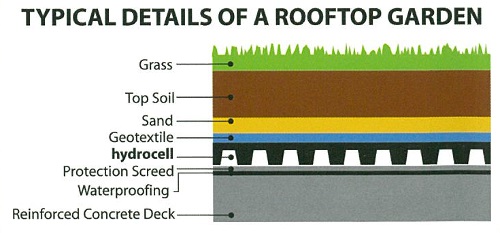

Installation Procedure
- Apply waterproofing layer and protection screed as specified..
- Install hydrocell with the studs facing the structure..
- Lay geotextile filter on top of hydrocell..
- Backfill permeable sandy soil layer as specified..
- Place permeable top soil as specified..
- Proceed with landscaping/paving works..
Advantages
- Economical: Very low cost compared to traditional aggregate system..
- High compressive strength: The cell structure is designed to provide compressive strength of more than 900kN..
- Lightweight: At 2KG, very high strength to weight ratio compared to aggregate system..
- Easy installation: Very fast and easy due to its modular construction, skilled labour is not required..
- Horizontal void area: Large surface void area of 67% allows water to pass through freely..
- High flow rate: Large volume voids to provide high flow rate and discharge capacity.
- Durable: Made from recycled polypropolene material which has high chemical resistance and as inert to natural occuring microorganism, acids and alkalis in soil..
- Zero: No maintenance is required..
- Environment friendly: Can be recycled..
