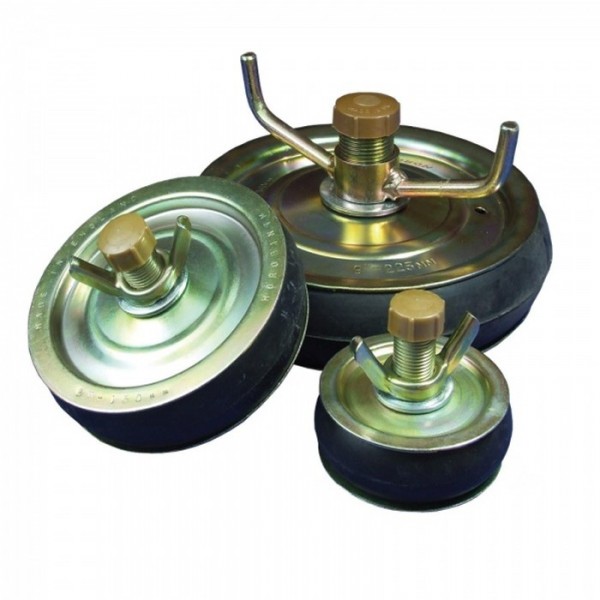

Horobin Steel Test Plugs 50MM (2") with Metal End Cap (Metal Plate)

Horobin Steel Test Plugs 50MM (2") with Metal End Cap (Metal Plate)

RM39.00
Price in reward points: 15600
  • Brand Horobin
  • Availability: In Stock
  • Model: HRB-STP50
  • Weight: 0.18kg
Products Sold: 0
Product Views: 242

Description

  • Chemical resistant seals can be supplied to order..
  • “Double Seal” plugs can be supplied to order..
  • Thrustwashers fitted as standard on all sizes..
  • Zinc plated – corrosion-resistant to 90 hours salt spray test..
  • Combines the economy of price with the strength of steel..
  • Carries the Horobin name – quality guaranteed..
  • Nominal pipe sizes, minimum and maximum pipe diameters each Plug will fit, maximum test pressure, and weight of Plug are available on our Web Site..




Specifications

Specifications

Pipe Size Internal Nominal Size
Will Fit Pipes With Internal Diameter  Minimum Insertion into the pipe (mm)
Overall length (mm)
Plate Material
Dia. Of Water Way (in)
Maximum allowable back pressure
mminMin (mm)Max (mm)
502"506132.782.8Metal Plate1/2"30 p.s.i
652 ½"617533.280.5Metal Plate
1/2"
30 p.s.i
803"73853480.5Metal Plate
1/2"
20 p.s.i
1004"9410837.583.3Metal Plate
1/2"
10 p.s.i
1255"1241393783.3Metal Plate
1/2"
10 .p.s.i
1506"15016039.783.3Metal Plate
1/2"
10 p.s.i
2008"19521537130Metal Plate
1"7 p.s.i
2259"21023058150Metal Plate
1"
7 p.s.i
25010"24526055150Metal Plate
1"
7 p.s.i
30012"29632085150Metal Plate
1"
7 p.s.i
37515"370415100210Metal Plate
1"
5 p.s.i
40016"39043095210Metal Plate
1"
5 p.s.i
45018"448495100220Metal Plate
1"
5 p.s.i
52521"----Aluminium Plate2"-
60024"----Aluminium Plate
2"-
76030"----Aluminium Plate
2"-
