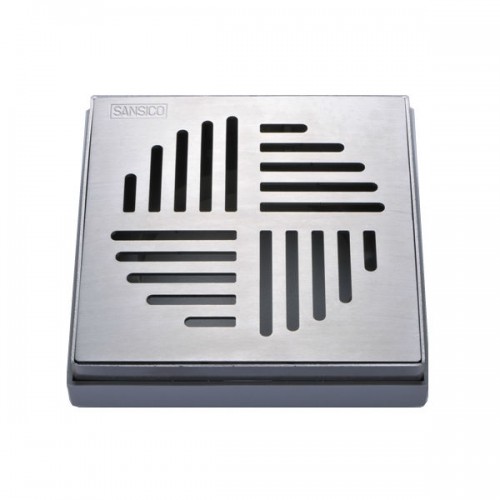

Sansico S2-CQS3-R Top Access Floor Trap 6" Chequer Square Stainless Steel Grating & Plastic Collar with SS Lining

Sansico S2-CQS3-R Top Access Floor Trap 6" Chequer Square Stainless Steel Grating & Plastic Collar with SS Lining

RM31.50
RM35.00
Price in reward points: 12400
Products Sold: 0
Product Views: 5971
Add to Cart
Click to share this page to your friends & families and start earning. Affiliate

Description

Summary / Brief intro to the system

ModelApplicationGrating & CollarTrap BodyTrap SystemOutlet
  • S2 - Recommended for bathroom & kitchen when basin & aircond discharge are not connected to floor trap. Ease of installation for renovation job with existing pipe sleeve. For conversion from conventional to top access floor trap..



Benefits

  • Top cleaning / access.
  • Odour tightness.
  • Luxurious and Strang Gratings.
  • Prevents cockcroaches / insects from entering the house.
  • Higher false ceiling height - Space saving.
  • 75mm opening for rodding purposes.



Dimensions of S2 Model

Flow rate: 61 litres / minute

Dimensions of S2 model Top Access Floor Trap System 4" Pipe Sleeve

*Sirim requirement: 48 litres / minute



The flow rating or capacity of a floor drain is determined by several factors:

Size of Waste-line

A horizontal branch waste-line with normal pitch or slope, with a deep seal trap at drain outlet is capable of conveying as follows:

SizeFlow Rate
  2 inch (50mm)  10 to 25 GPM
  3 inch (75mm)  30 to 75 GPM
  4 inch (100mm)  75 to 150 GPM



Grate Free Area

Outlet size and depth of the floor drain are important in determining the rating of a drain. If the free drainage area of the grating is small, water will build up on the floor, at some point, the head build up above the floor level will produce a flow through the drain that will equal the maximum flow capacity of the horizontal drain line.

The maximum recommended flow rating is based upon the size of the drain, size of outlet connection and grate free area. For the Sansico Floor Trap System, a 20mm head buildup of water was used (as per BS EN 1253), and the flow rates obtained are in excess of 84 Litres Per Minute (18.5 GPM) for our S3 model.



Traps with sediment buckets, strainers, etc. will reduce maximum flow rating by up to 20%

The table gives general reference when considering overlow of fixtures or sources of water that may be discharged through floor drains.

FixturesFlow (GPM)
  Wash Basin  5-7
  Kitchen Sink  8-10
  Bath  6-10
  Shower  5-8
  Washing Machine  4-6
  Dish Washing Machine  4-6



Tests undergone by the Sansico Floor Trap / Gulley

  • Load Test.
  • Depth of Water Seal.
  • Resistance of Water Seal to Pressure.
  • Access for Cleaning.
  • Anti Blockage.
  • Temperature Cycling.
  • Odour Tightness of Body.
  • Flow Rate Test.
